Beyond Your Imagination

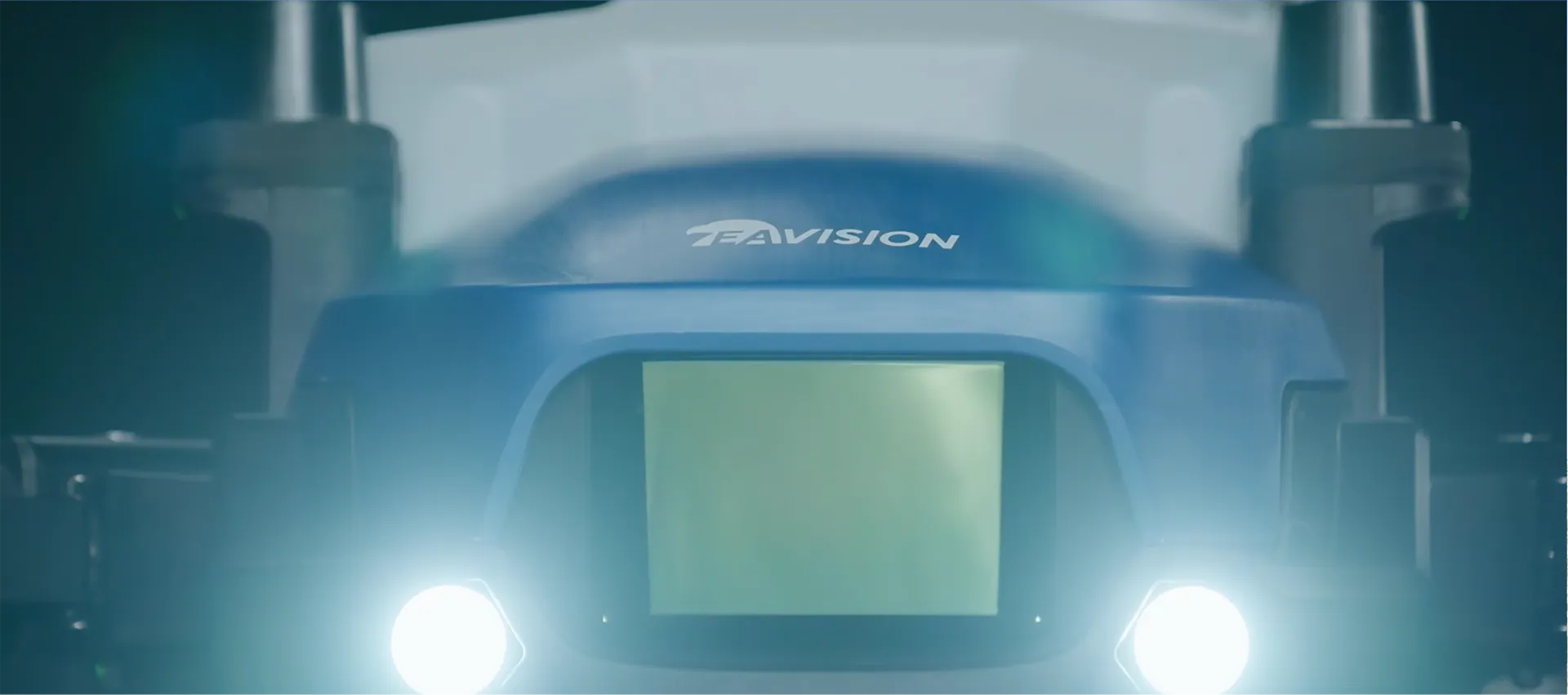

EAVISION J100
2024
Agricultural Drone

Watch Video

Key Highlights
Application Scenarios
Industrial Design
Operation Control
Power System

Spraying, Spreading, Lifting, Mapping Fully Upgraded

Max Flow Rate

24 L/min

Max Spreading Payload

60 kg

Max Spreading Speed

110 kg/min

Ultra‑Fast Charging

9 min

3.3 ha Mapping in Just

5 Minutes.

6 nm Octa‑Core

Automotive‑Grade Processor

Innovative Dual‑Electromagnetic Impeller Pump

Max flow up to 24 L/min, efficient and durable.

Integrated Spray Tank

Standard with 45 L tank, optional with 60 L max.

3rd‑Gen CCMS^® Bimodal Mist Nozzle

Continuously adjustable droplet size from 10–300 µm. Equipped with standard high-atomization, high-flow discs, allowing seamless switching between orchards and field crops, extends nozzle life.

MCRFF (Mist Counter‑rotating Rollowing Flow Field)

A large counter-rotating diffused mist field is formed along the front and rear edges of the aircraft. Upward lifting from below, downward penetration from above, and broad lateral diffusion through the mid-canopy deliver deeper penetration and a more uniform overall distribution.

Extra‑Large Hopper

Larger capacity greatly enhances spreading efficiency. Enlarged loading port makes filling faster and easier.

Rotary Material Shortage Sensor

Rotary material shortage sensor provides more precise detection. Paired with a replaceable blade agitator for ultra‑fast spreading.

Quick Changeover Design

The spreading module supports quick changeover with the spraying module, and the 50 kg hopper adapts efficiently to various operational scenarios

Innovative Super‑Link Communication Station

This device integrates four key functions: high-precision mapping, offline base station, signal relay, and lifting guidance. It operates reliably even in no-network, weak-signal, or terrain-blocked conditions — all with ease.

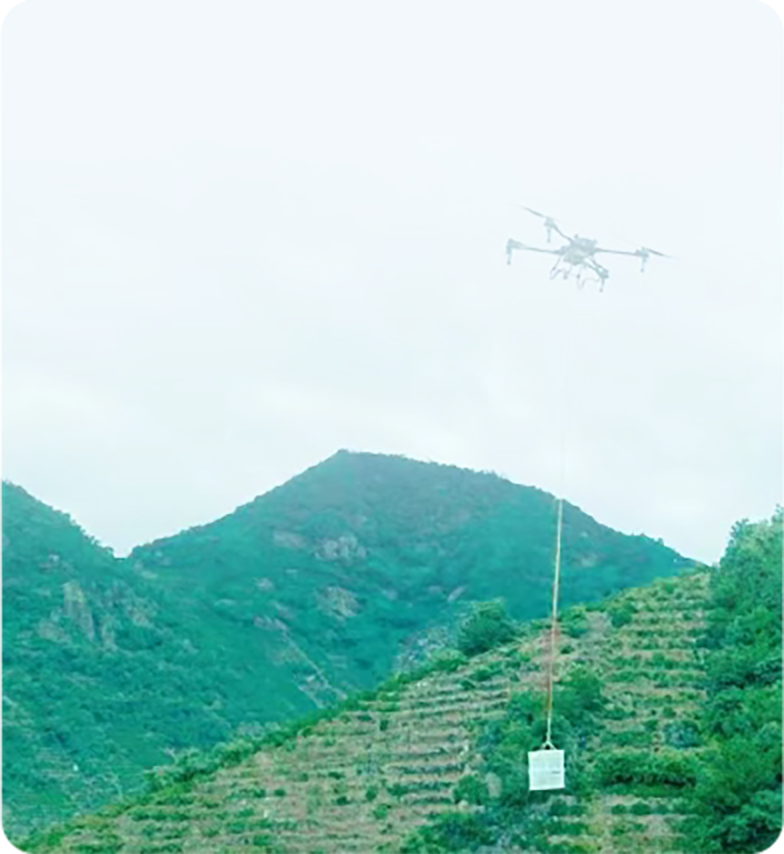

Auto‑Release Hook Mechanism

Comes with high‑strength ropes for quick installation and removal, with torque‑release and auto‑release hook mechanisms. Combined with anti‑swing control algorithm, it enhances lifting flight safety.

Innovative Auto‑Guidance Design

The lifting guidance eliminates manual point-searching and reduces misjudgment risks during flight, enabling one-tap navigating between take-off and drop-off points for fully autonomous lifting—doubling operational efficiency.

Multi‑ALS Technology

Delivers a 3× increase in both FOV and detection distance, covering an area the size of a full football field and detecting obstacles as small as 1 cm.

Autonomous Safe Route Planning

Powered by high-performance onboard computing, it builds real-time 3D maps of the operating environment, enabling precise high-speed obstacle avoidance and terrain following across complex terrains, while autonomously planning safe flight routes.

Night Flight Mode

Ensures consistent day-and-night operation with no need for manual obstacle marking. Even in orchards or power-line-dense environments, it maintains 90° terrain following, power-line threading, and smooth maneuvering—even at night with all four mist nozzles active.

Precision Terrain‑Following

Next-generation ultra-low-altitude terrain- and canopy-following flight control system, powered by a front-view ALS line array that builds real-time point-cloud maps for highly accurate terrain-following operations.

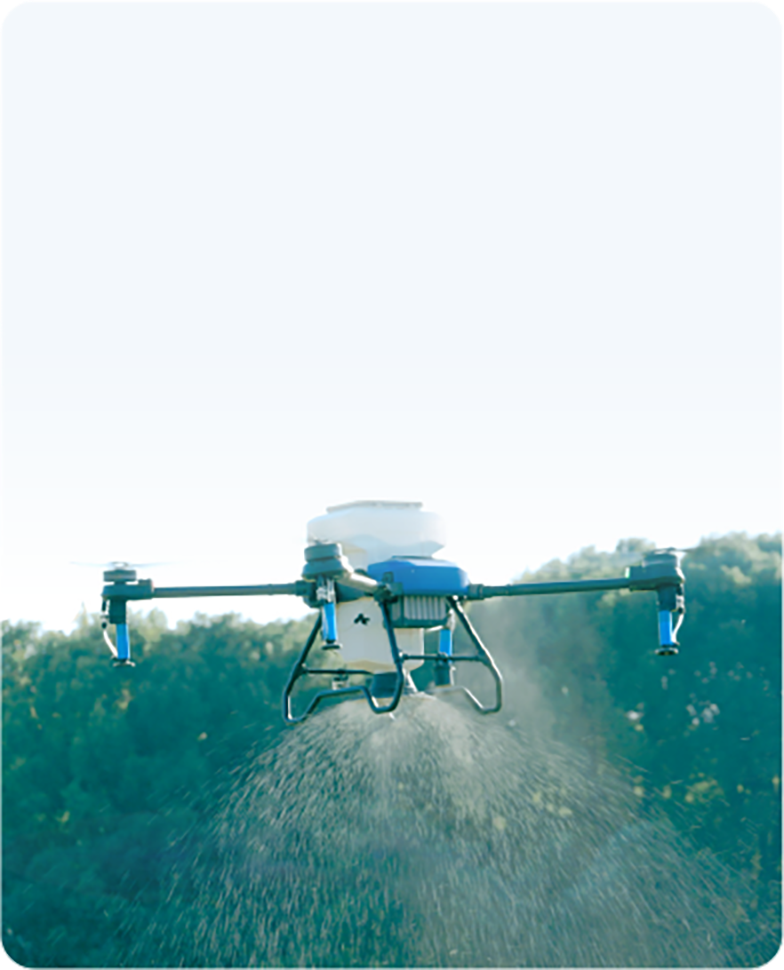

3rd‑Gen CCMS^® Bimodal Mist Nozzle

Nozzle Upgrades

Superior Performance

A new variable-outlet design delivers more uniform atomization, with continuously adjustable droplet sizes covering 10–300 µm across the full 24 L/min flow range. High-atomization, high-flow spray discs enable seamless switching between orchards and field crops, while extending overall nozzle service life.

Max Flow Rate

L/min

Max Service Life

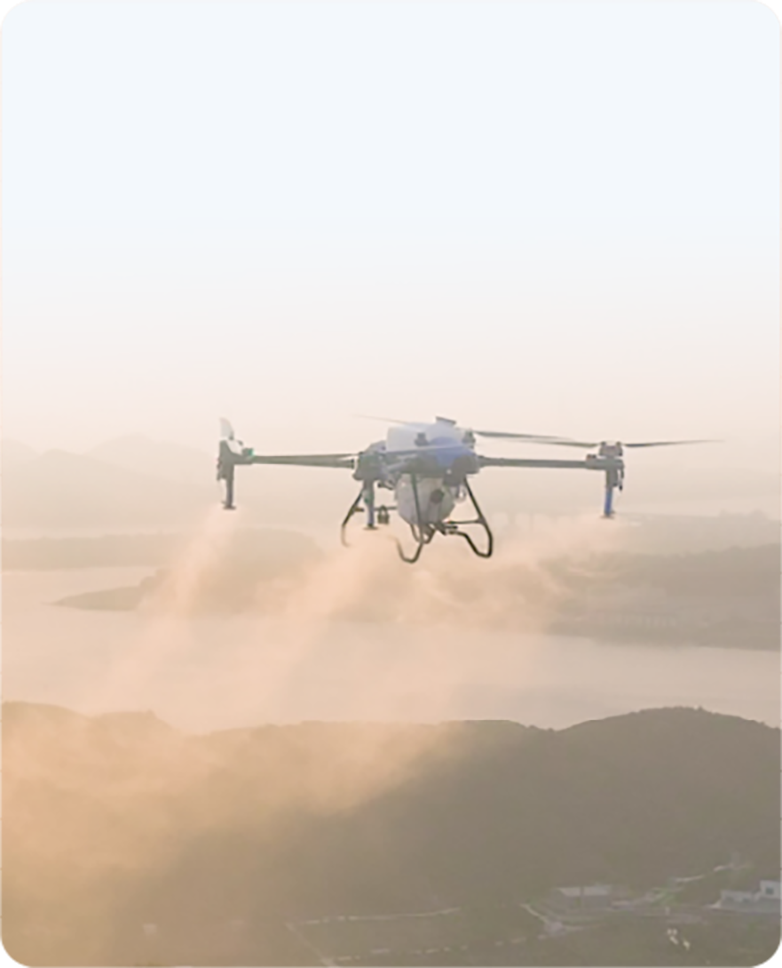

Innovative MCRFF Technology

Mist counter‑rotating rolling

flow field brings uniform

coverage and deeper penetration

10–300 µm full-spectrum droplet sizes align perfectly with the drone’s downwash–updraft airflow pattern, forming a large counter-rotating, diffused mist field along the front and rear edges of the aircraft. This creates upward lifting from below, downward penetration from above, and broad lateral diffusion through the mid-canopy—delivering deeper penetration and a more uniform overall distribution.

Adjustable Range

µm

56‑inch High‑Efficiency Propellers

Ultimate Power

High-Efficiency Operation

Each propeller delivers up to 53 kg of max thrust, achieving a full-load thrust-to-weight ratio of 2.0 and a top flight speed of 13.8 m/s. Synchronized yaw during takeoff/landing, combined with drift turns for rapid route switching, ensure exceptional wind-mist synchronization and agile responsiveness. Overall operational efficiency reaches up to 24 ha/h.

Inch

High-Strength Propellers

m/s

Max Flight Speed

HD FPV Camera for Aerial Photography & Mapping

Built-in aerial survey

function enables rapid

image generation.

Each propeller delivers up to 53 kg of max thrust, achieving a full-load thrust-to-weight ratio of 2.0 and a top flight speed of 13.8 m/s. Synchronized yaw during takeoff/landing, combined with drift turns for rapid route switching, ensuring exceptional wind-mist synchronization and agile responsiveness. Overall operational efficiency reaches up to 24 ha/h.

FPV resolution up to

3.3 ha mapping in just

min

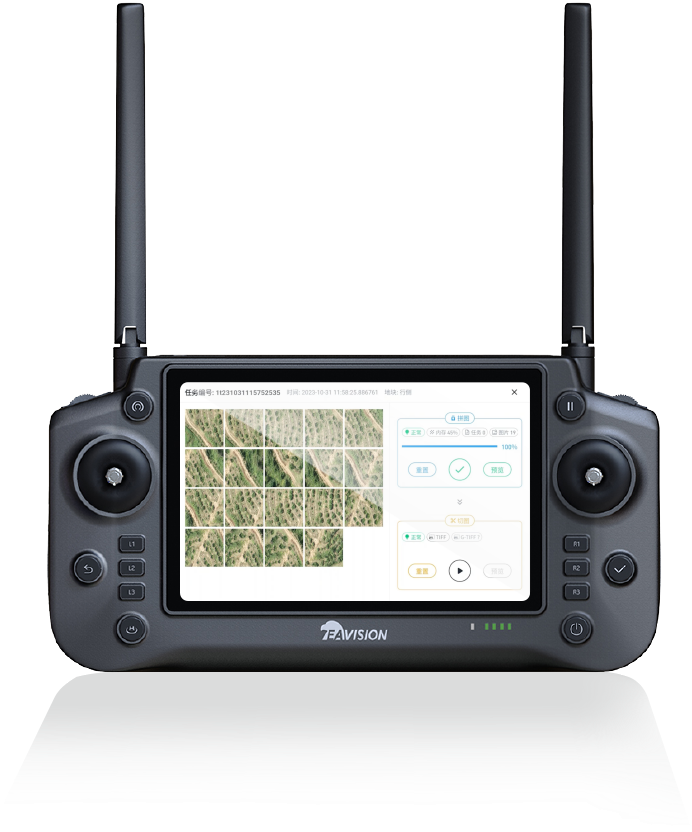

Hand‑Drawn Boundaries

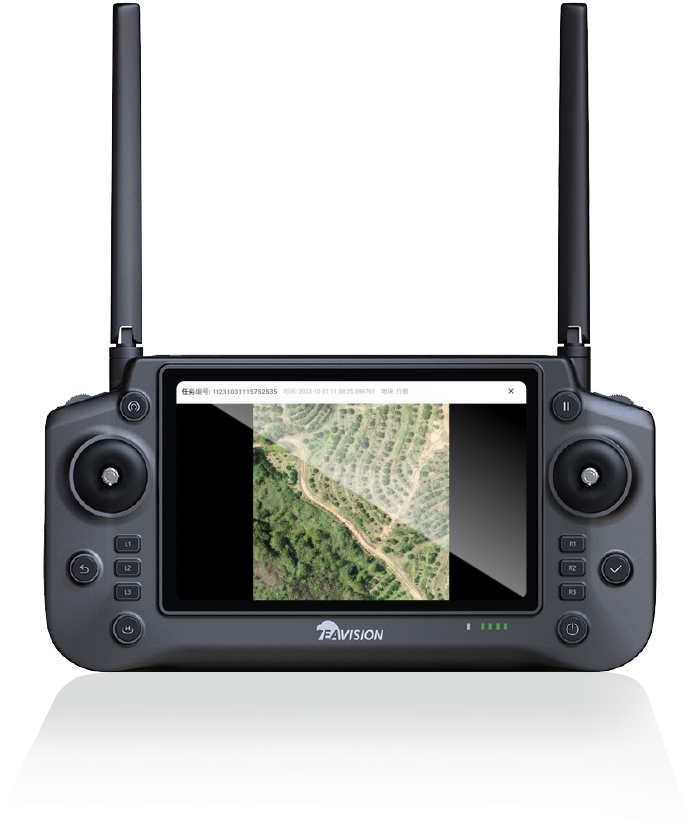

Rapid Mapping Output

Fast Images Stitching

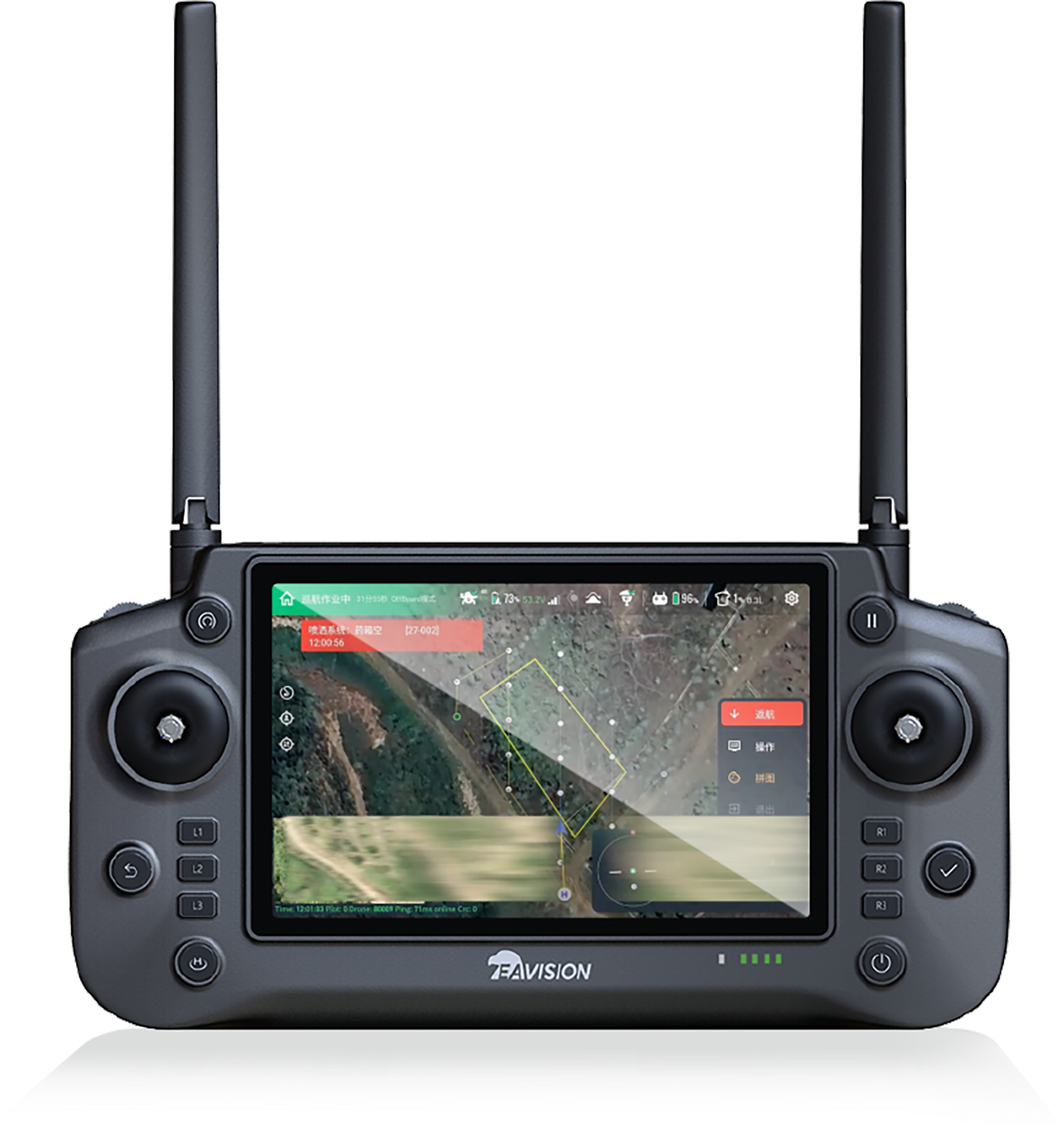

High‑Performance

Remote Controller

The remote controller features a 3 km communication range, a 7-inch automotive-grade HD display, and a 6 nm octa-core automotive-grade processor with enhanced cooling, delivering faster, smoother operation.

Extended Communication

Range

3 km communication range

7‑Inch HD display

display

Clearly visible even in direct sunlight

High‑Performance

Processor

Built‑in octa‑core processor 6 nm high‑performance chip

High‑Performance

Cooling Fan

Equipped with a high‑performance cooling fan, ensuring smoother operation

Manual Plus Mode

In manual mode, it supports fixed-rate application, fixed speed, fixed altitude (up to 30 m), and directional flight. With omnidirectional obstacle avoidance, it enables one-tap U-turns and route switching without prior field mapping—ensuring safe and precise manual operation.

Super‑Link

Communication Station

Four powerful functions in one: High-Precision Mapping, Offline Base Station, Signal Relay, and Lifting Guidance. Effortlessly handle operations in offline, weak-signal, or mountain-obstructed environments.

Field Boundary Marking

Manual point marking for more reliability, Handle both surveying and operation with ease.

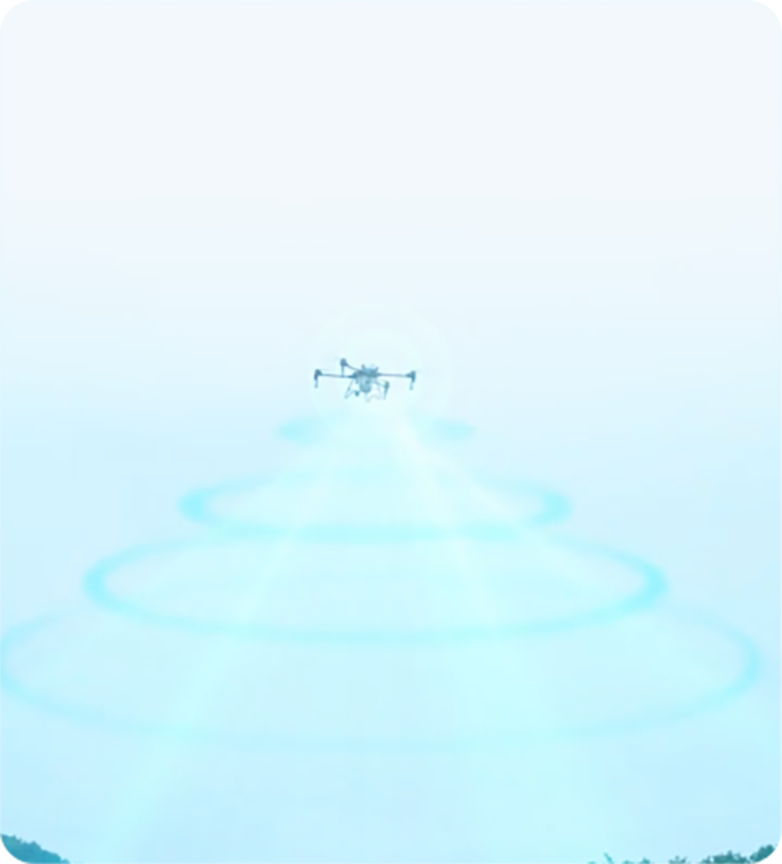

Extended Communication Range

Stable connectivity for tall crops, hills, and mountain terrains, no fear of signal loss.

RTK Mobile Base Station

Provides the drone with centimeter-level, real-time positioning for precision navigation.

CTB Integrated Ultra‑Fast

Charging Battery

CTB Integrated Ultra‑Fast Charging Battery

Blade-type battery structure supports dual-battery cycling operation even in a 40℃ high-temperature environment.

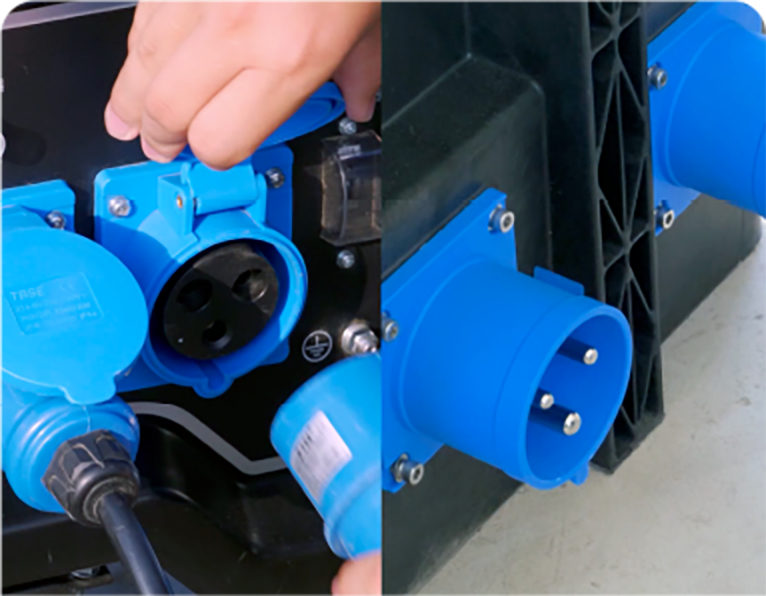

Dual-Port Charging

Eliminates issues of dirt‑induced short circuits and overheated ports during high-temperature operations in summer.

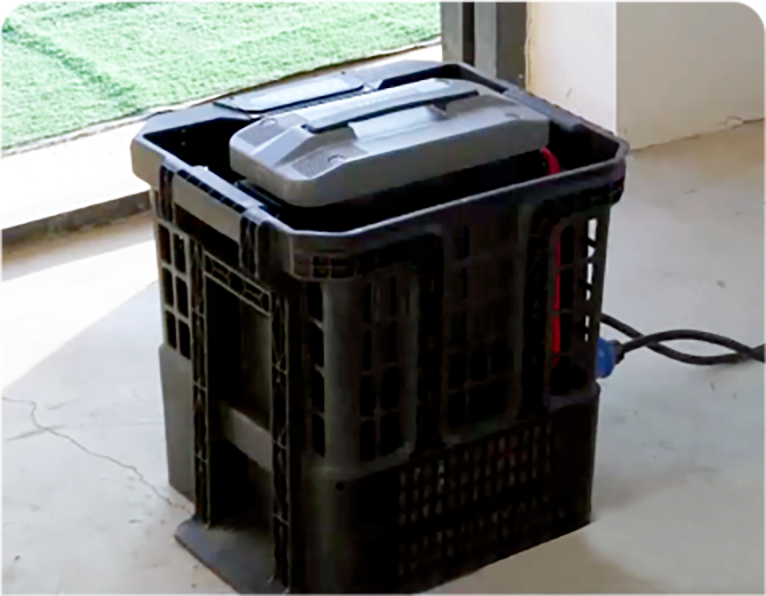

9 min Fast Charge Fully

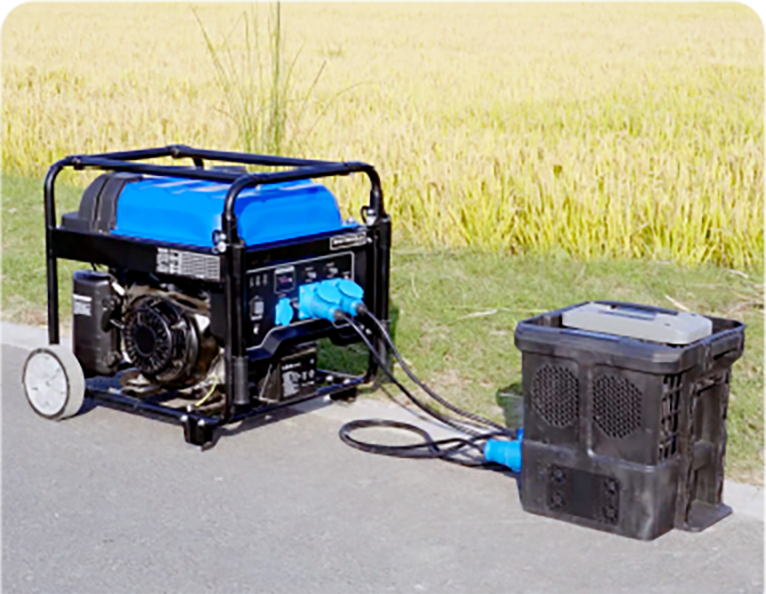

9000 W integrated cooling charger charges fully in as fast as 9 min. Switch freely between fast and slow charging; supports generator charging and AC power charging. Meets multi‑scenario charging needs with safety and speed.

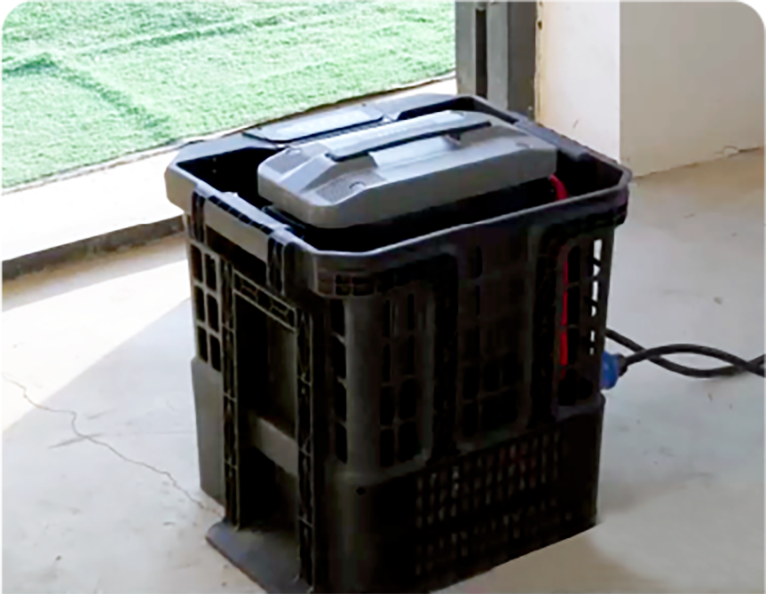

Integrated Cooling Charger

Safe and Fast

The 9000 W integrated cooling charger uses dual-axis high-flow fans and supports 5C fast charging, reaching a full charge in as little as 9 minutes. It maintains reliable two-battery cycling even in 40 °C environments, with fast and slow charging modes available as needed.
