EAVISION J150 2025 Agricultural Drone
All-Scenario Leader in Spraying, Spreading, and Lifting

EAVISION J150
2025
Agricultural Drone

Watch Video
  • Key Highlights
  • Application Scenarios
  • Industrial Design
  • Operation Control
  • Power System
Master of Spraying, Spreading, Lifting and Mapping
Max Flow Rate
40 L/min

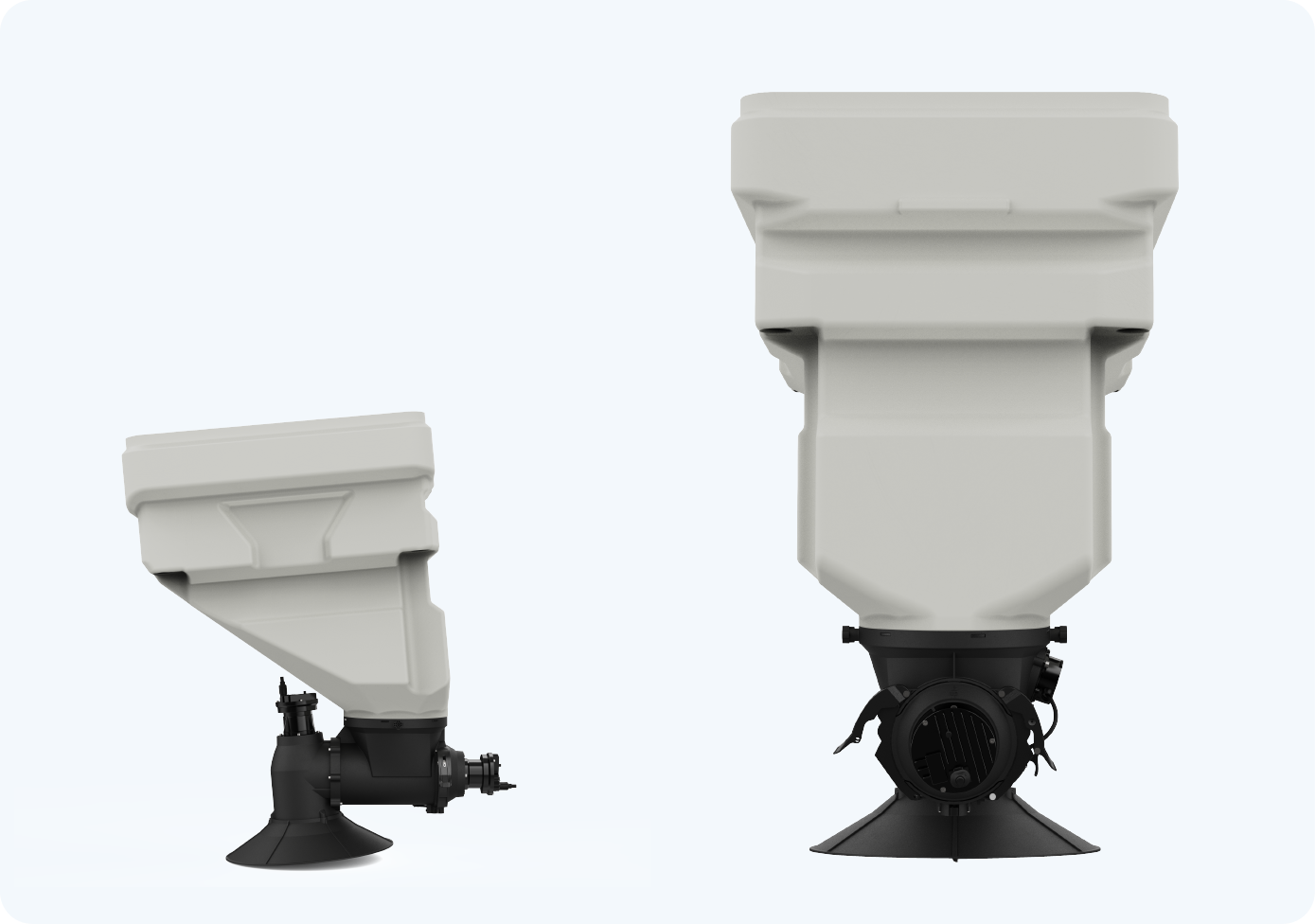

Max Spreading Payload
80 kg
Max Spreading Speed
280 kg/min
Quick Load &
Unload Design Efficient Transport
Up to 13.3 ha Mapping Per Single Flight

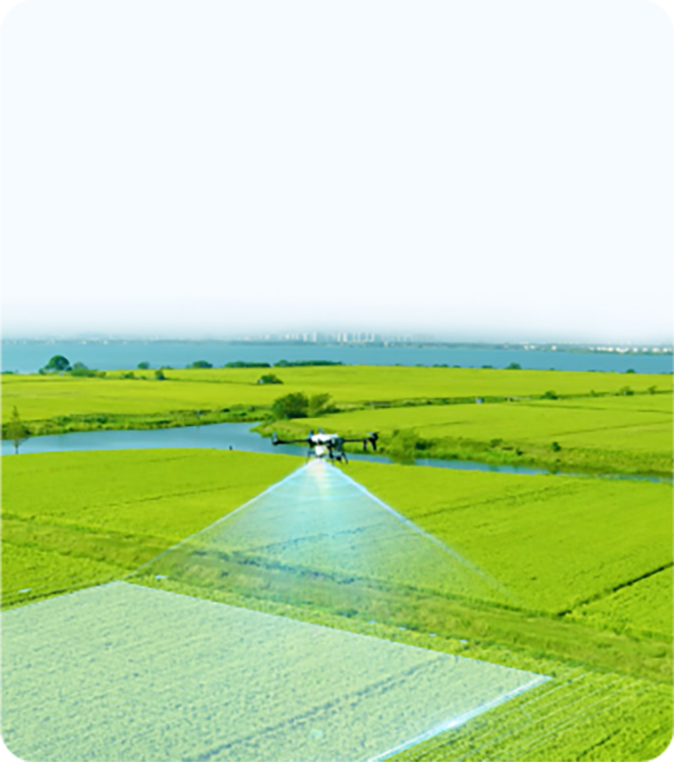

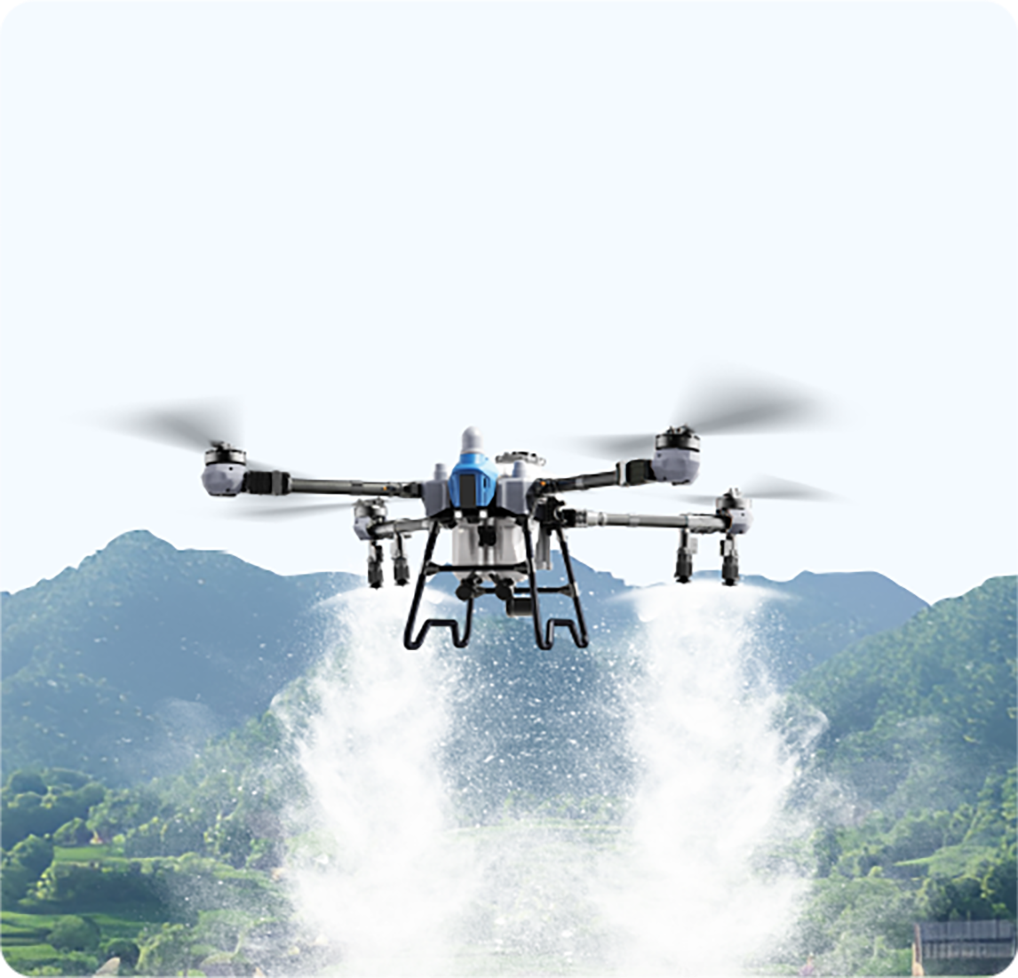

Rice Fields Spraying
Application volume: 45 L/ha
Operation speed: 6 m/s
Spray width: 6 m

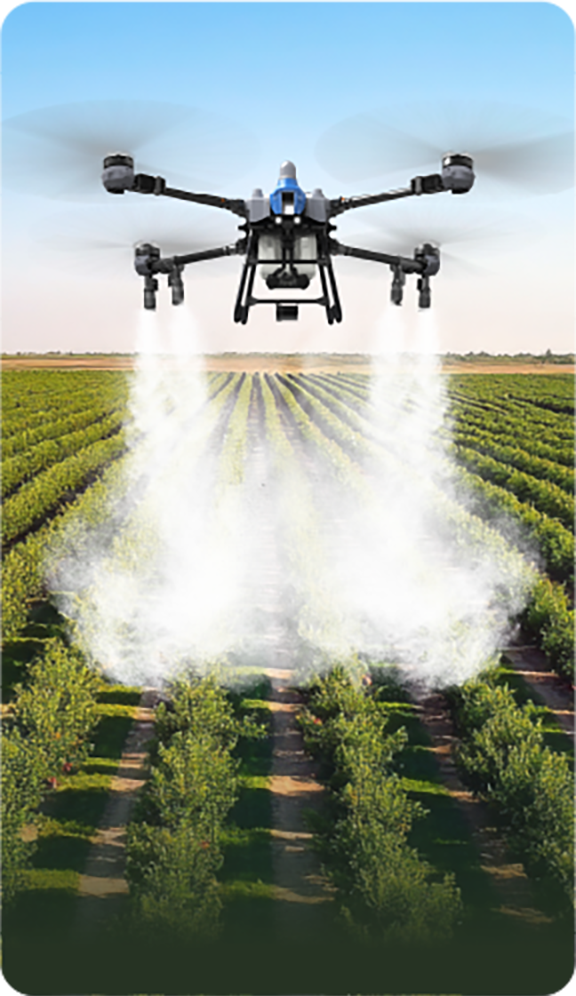

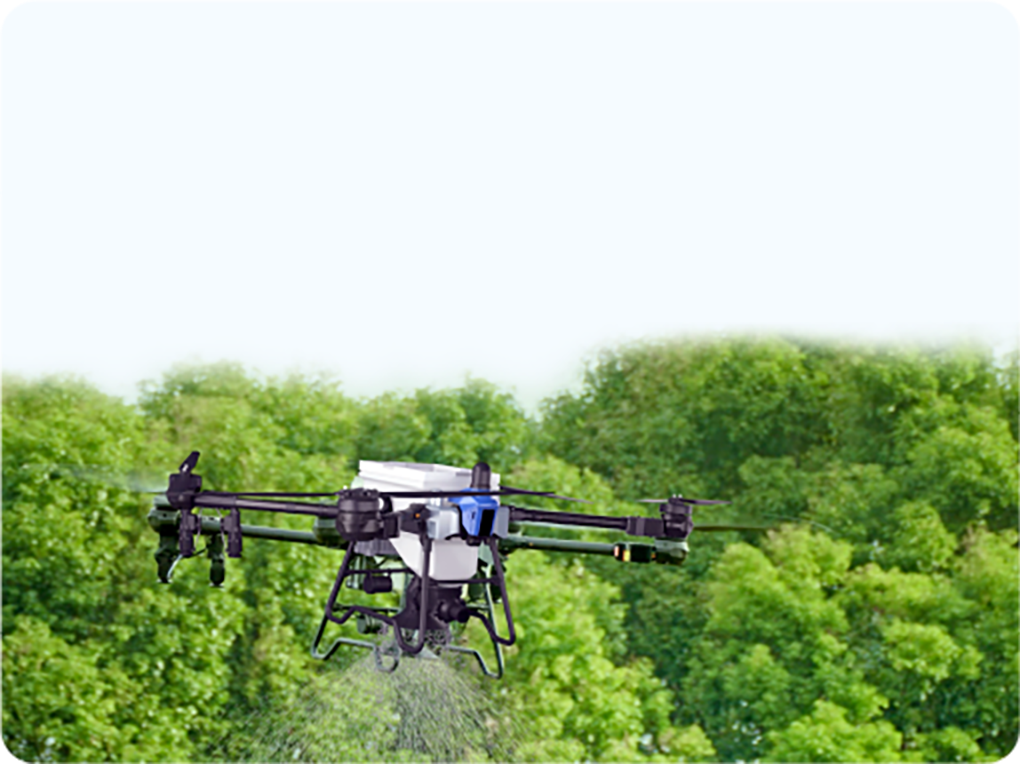

Orchards Spraying
Application volume: 225 L/ha
Operation speed: 2–3 m/s
Spray width: 5 m

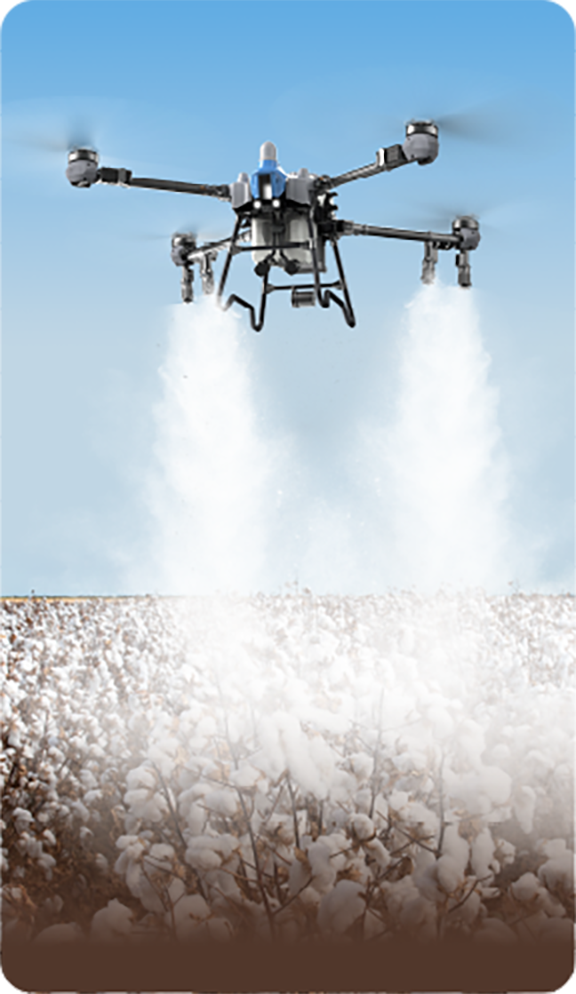

Cotton Defoliant Operation
Application volume: 3000 L/ha
Operation speed: 7 m/s
Spray width: 7 m

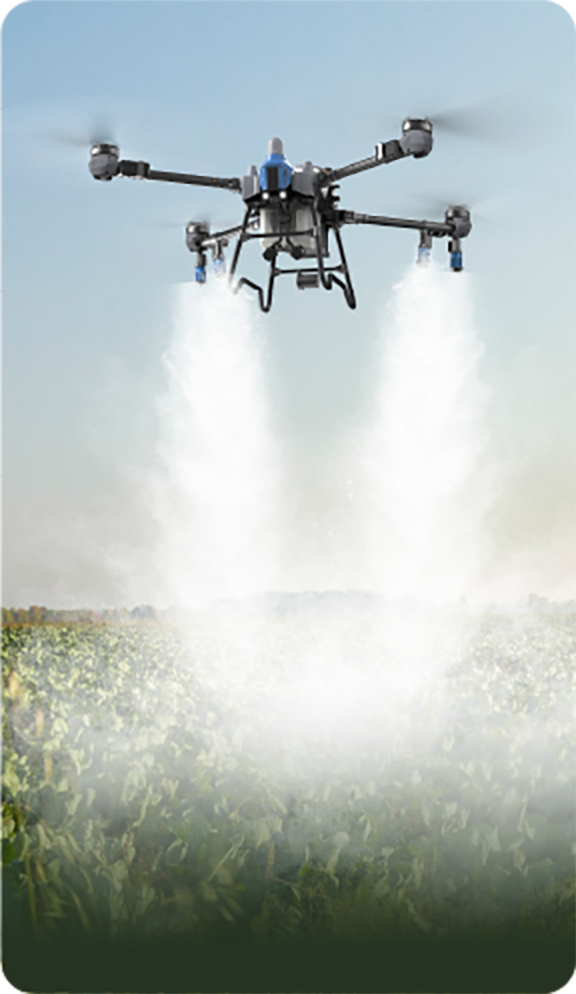

Vegetable Foliar Fetilization
Application volume: 45 L/ha
Operation speed: 13 m/s
Spray width: 7 m
Rice seed
Compound fertilizer
Rapeseed
Aquaculture feed

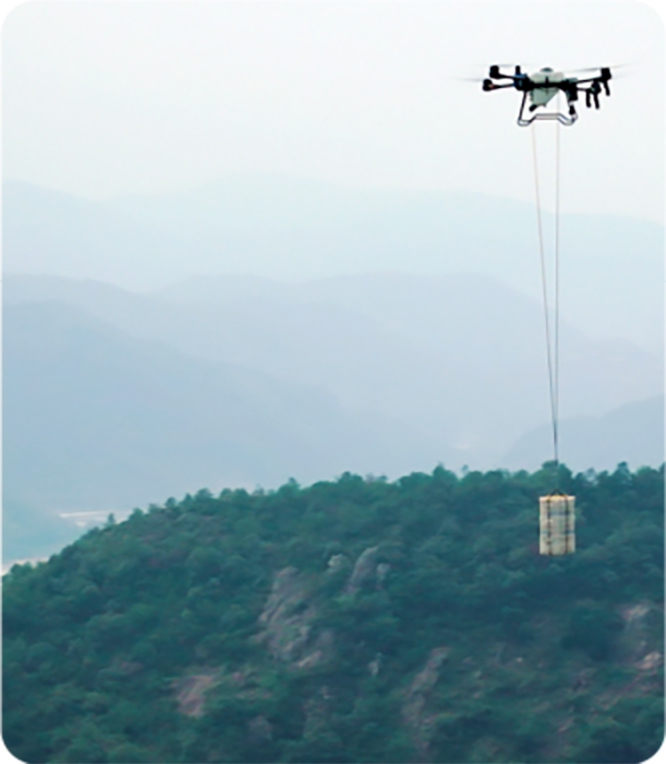

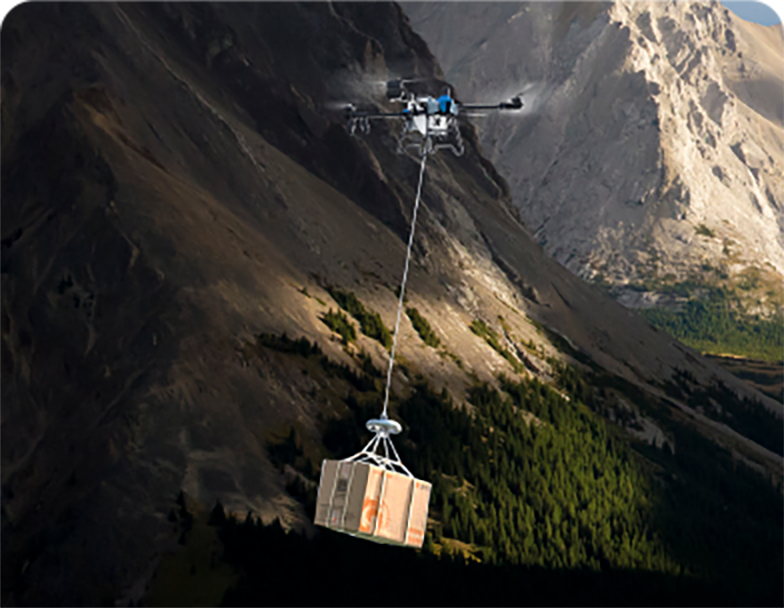

Transport Mode
The lifting hook remains securely locked during flight, ensuring a firm and safe operation.。

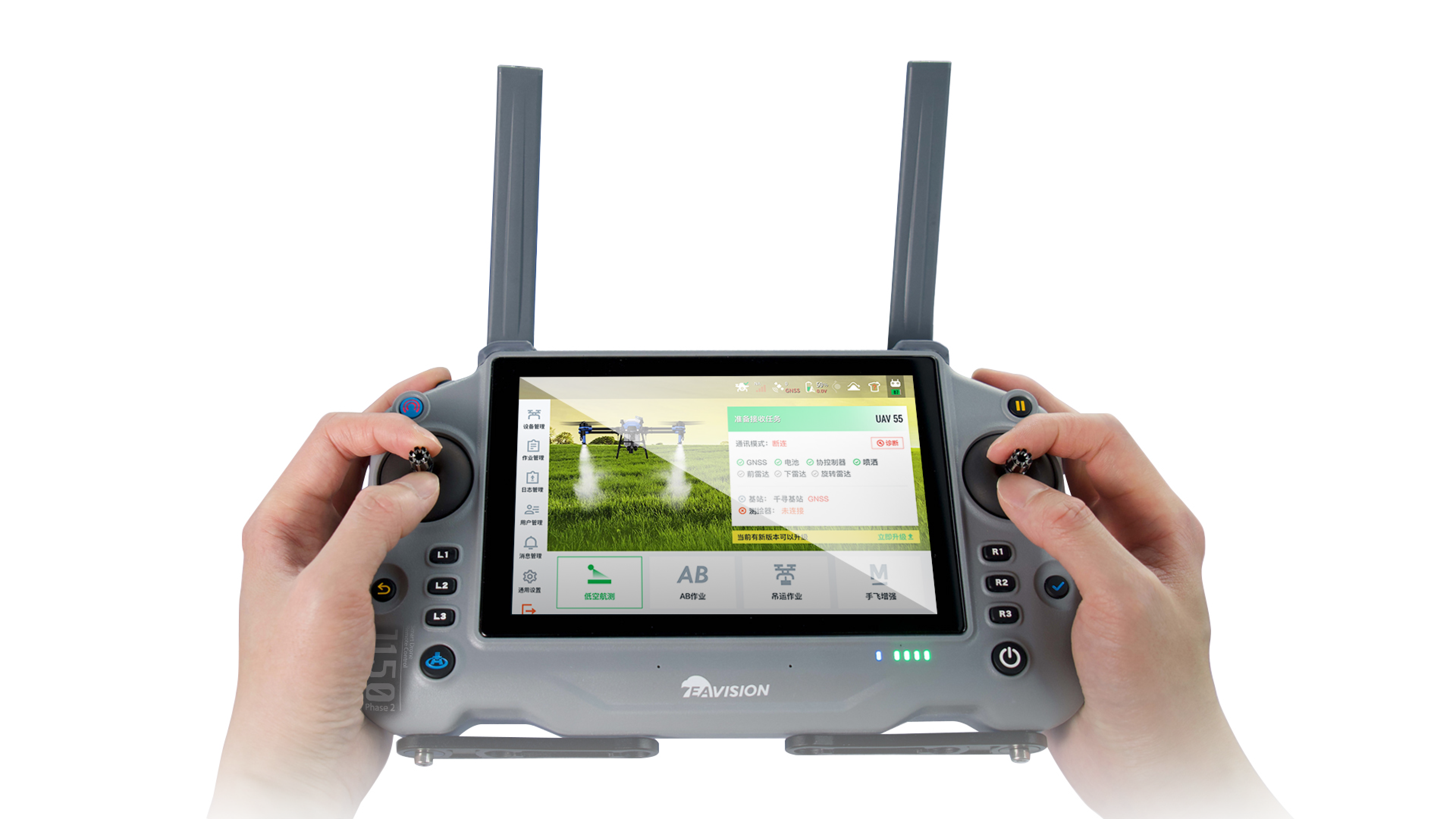

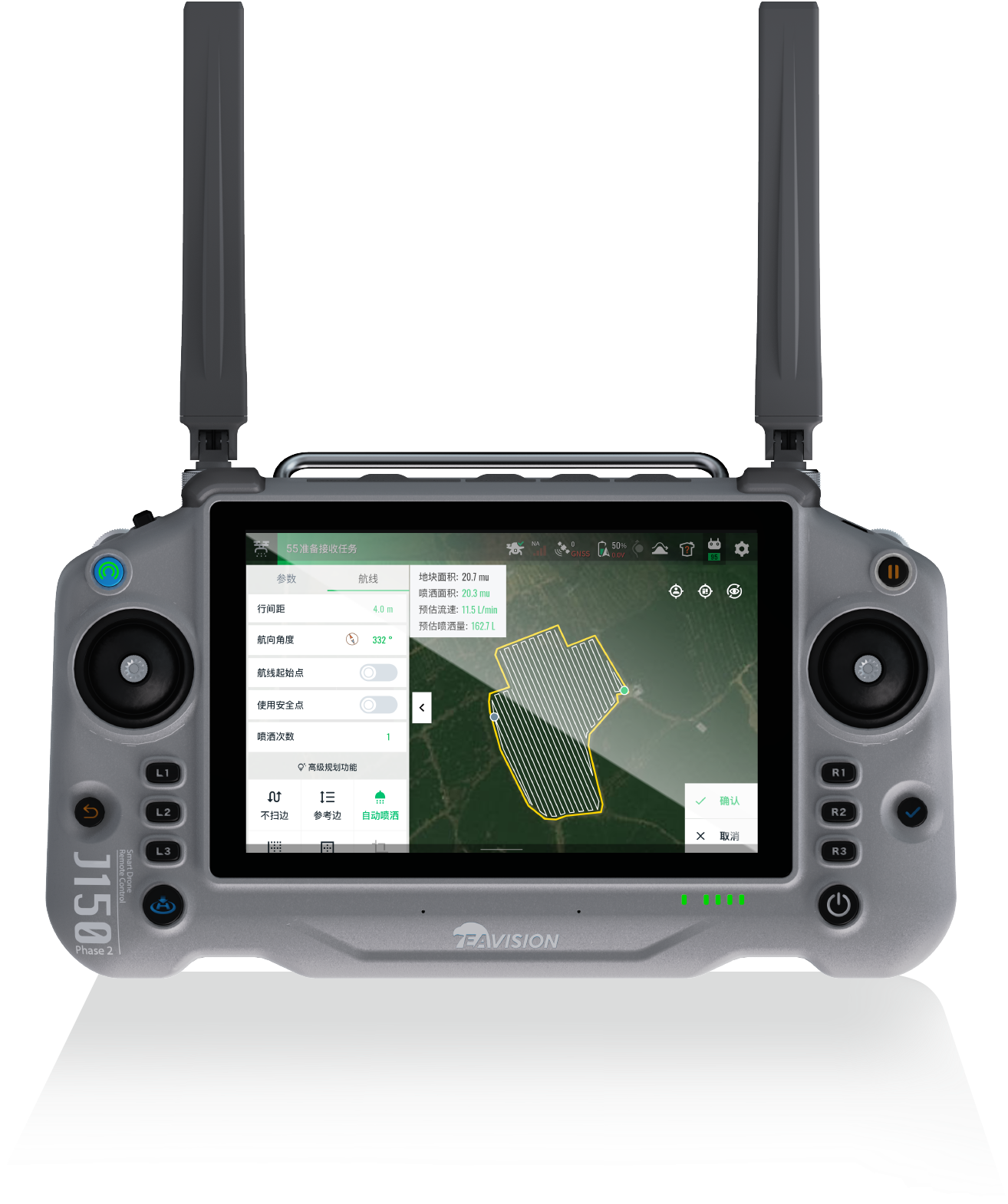

High-Performance Remote Controller
Brand new high-performance remote controller features a 7-inch automotive-grade HD display for a clearer interface. It is powered by a 6nm octa-core automotive-grade AI processor and is equipped with a high-performance cooling fan for peak computing power and more responsive operation.

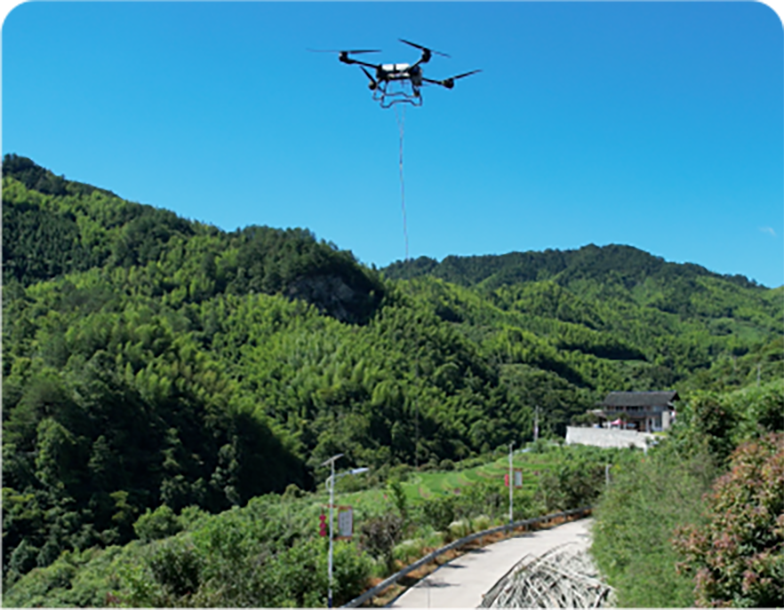

Auto-Guided Lifting
The system enables one-tap navigating between take-off and drop-off points, reducing manual effort and transport costs. Combined with the new obstacle avoidance system, it provides 360° automatic hovering to avoid collisions during manual flight.
Night-Flight Mode
Power Lines Nowhere to Hide
Night-time obstacle detection enables day-and-night operations. In mountainous or orchard environments with intersecting power lines, no manual marking is needed — ensuring all-scenario safety even in darkness.
New AB Routet Mode
Plan AB routes mid-air and launch with a single tap for higher efficiency. The new Aerial Relay mode allows for instant in-flight task deployment, eliminating the need for repeated landings.
Autonomous Obstacle Avoidance
Safer Than Ever
One-tap takeoff anytime, anywhere. With the industry-first 180° escape maneuver, J150 can operate beneath dense canopies with smooth and precise crop-following performance.
Built-in Aerial Mapping
Instantly Generate HD Maps
The new 2K fisheye FPV camera adopts virtual gimbal with electronic stabilization. Optimized mapping algorithms enable continuous high-speed capture, automatic cloud backup upon disconnection, and seamless data transfer after landing —no waiting required.
4th-Gen CCMS® Bimodal Mist Nozzle
Upgraded Nozzles for Superior Performance
Powered by a 2000W FOC ESC, it enables continuous, high-volume spraying of droplets under 40μm, even at a 40 L/min flow rate.
Max Flow Rate
L/min
Max Service Life
L
Exclusive Hybrid Droplet Technology
Precision Care for Every Crop
Four droplet sizes in a single flight,with each nozzle adjustable between 10–300 μm. Larger droplets evenly coat leaf surfaces,while smaller droplets fully penetrate the canopy underside.The mixed-droplet mist and downward vortex airflow create a multidirectional, multi-layer spray field,achieving full canopy-to-core coverage.
Per Flight
Droplet Sizes
Adjustable Range
μm

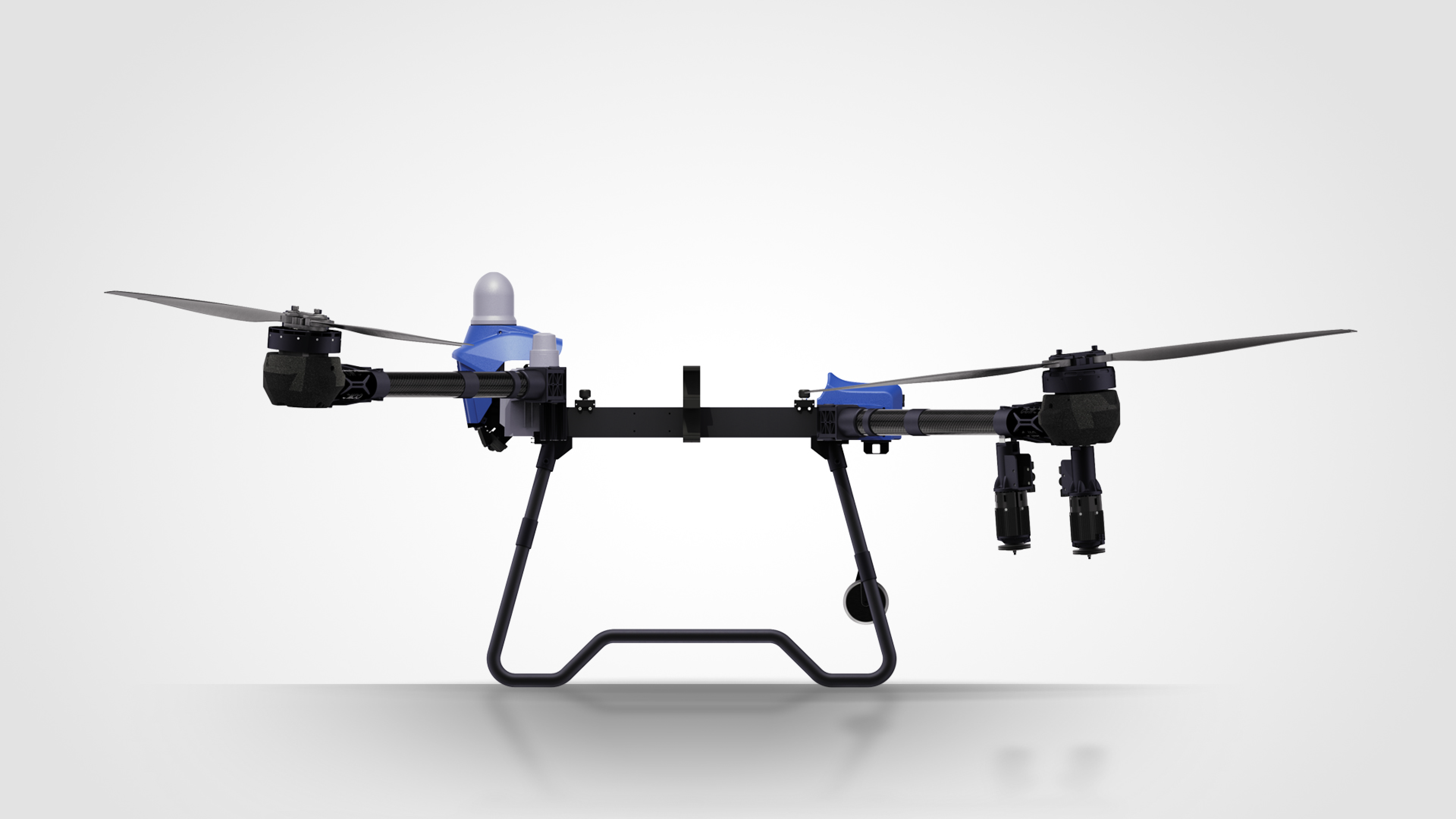

Simplified Design Uncompromising Reliability
Building on our heavy-duty design aesthetic, the new low-drag airframe reduces power consumption while boosting efficiency. A breakthrough in materials science enhances the drone's overall strength and durability, ensuring uncompromisingly reliable operation and maintenance.

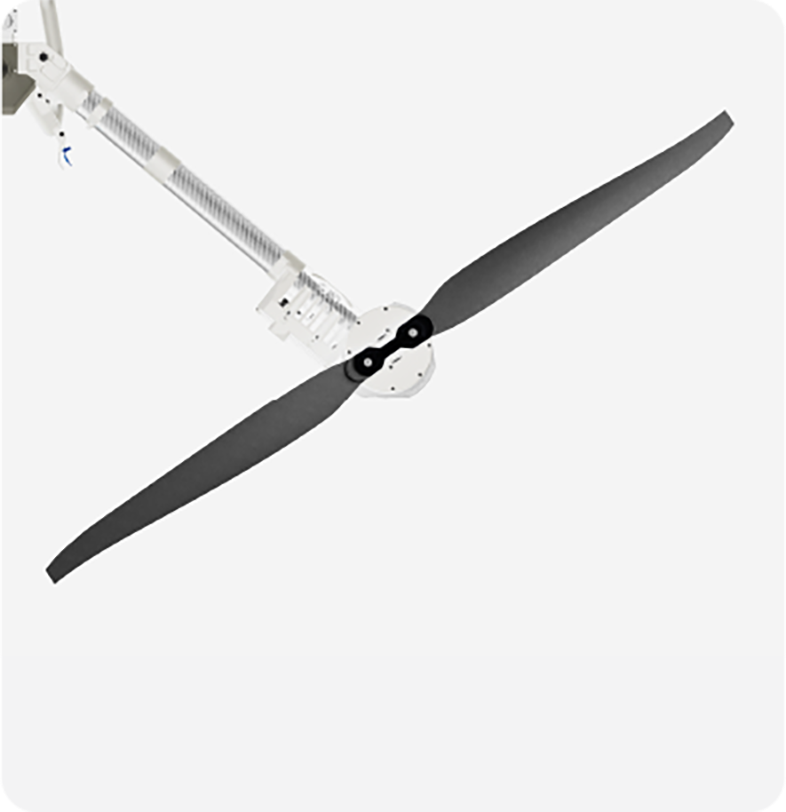

63-inch high-strength propellers
deliver ultimate dynamic response.

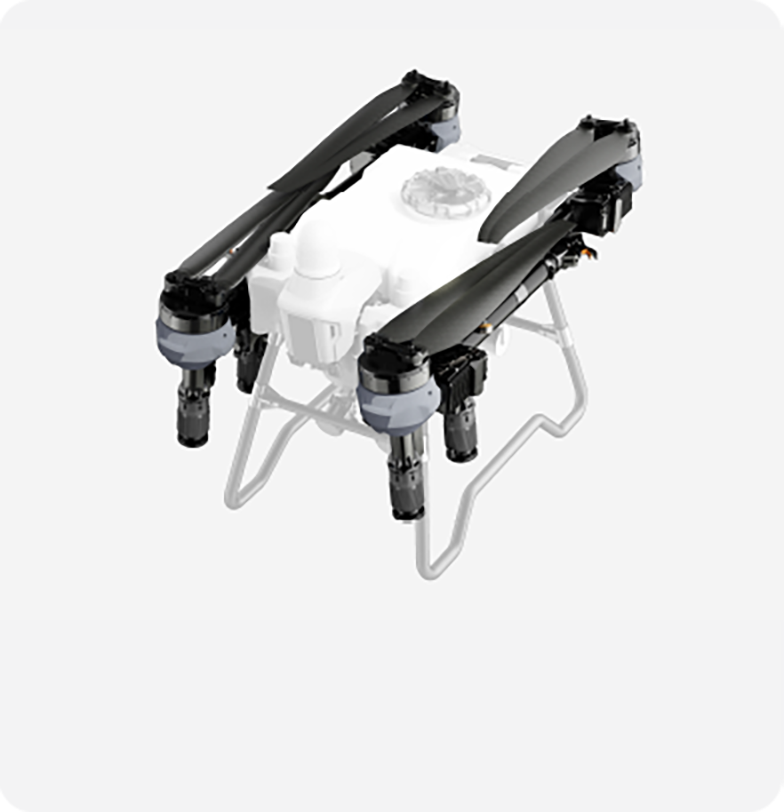

Dual-fold arm and propeller
design for effortless transport.

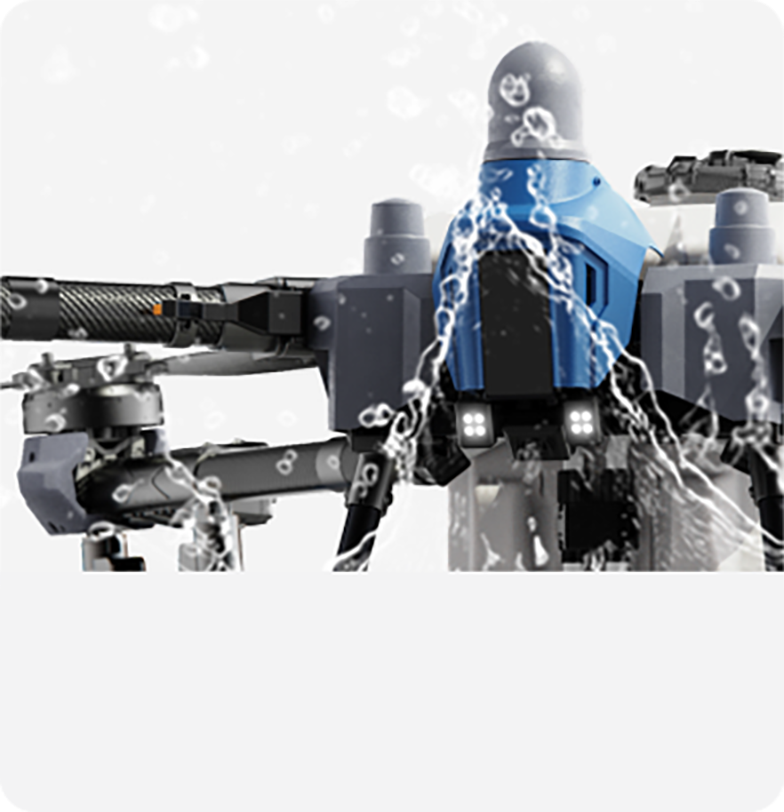

IPX6K rated for full wash-down,
minimizing corrosion and residue.
Fully Autonomous Operations
Simple Controls, Powerful Results
Intelligent Route Planning
The system automatically generates the optimal route based on your field's shape and flight parameters. It displays estimated return points for low battery or liquid levels and initiates automatic return when needed. Incomplete missions are automatically saved, allowing you to resume flight seamlessly and adapt to changing weather or unexpected events.
Entry & Exit Routes
Intelligent Images Stitching
Multi-Plot Operations

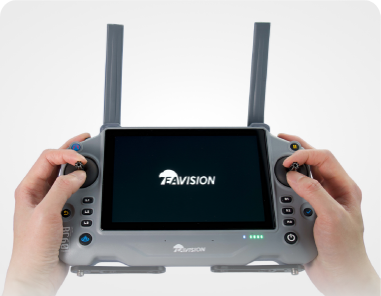

All-New Control Experience
Ergonomically designed for a comfortable grip, with intuitive, responsive controls
7-inch Ultra-Bright Integrated Display
Clear visibility even under direct sunlight
8-Hour Ultra-Long Battery Life
No more range anxiety
Ultra-Wide FPV View
Virtual gimbal with smooth 90° FPV tilt adjustment
High-Performance Processor
Powered by an 8-core processor built on a 6nm architecture
Superior Situational Awareness
Supports field mapping and hand-drawn boundaries — truly “draw and fly”

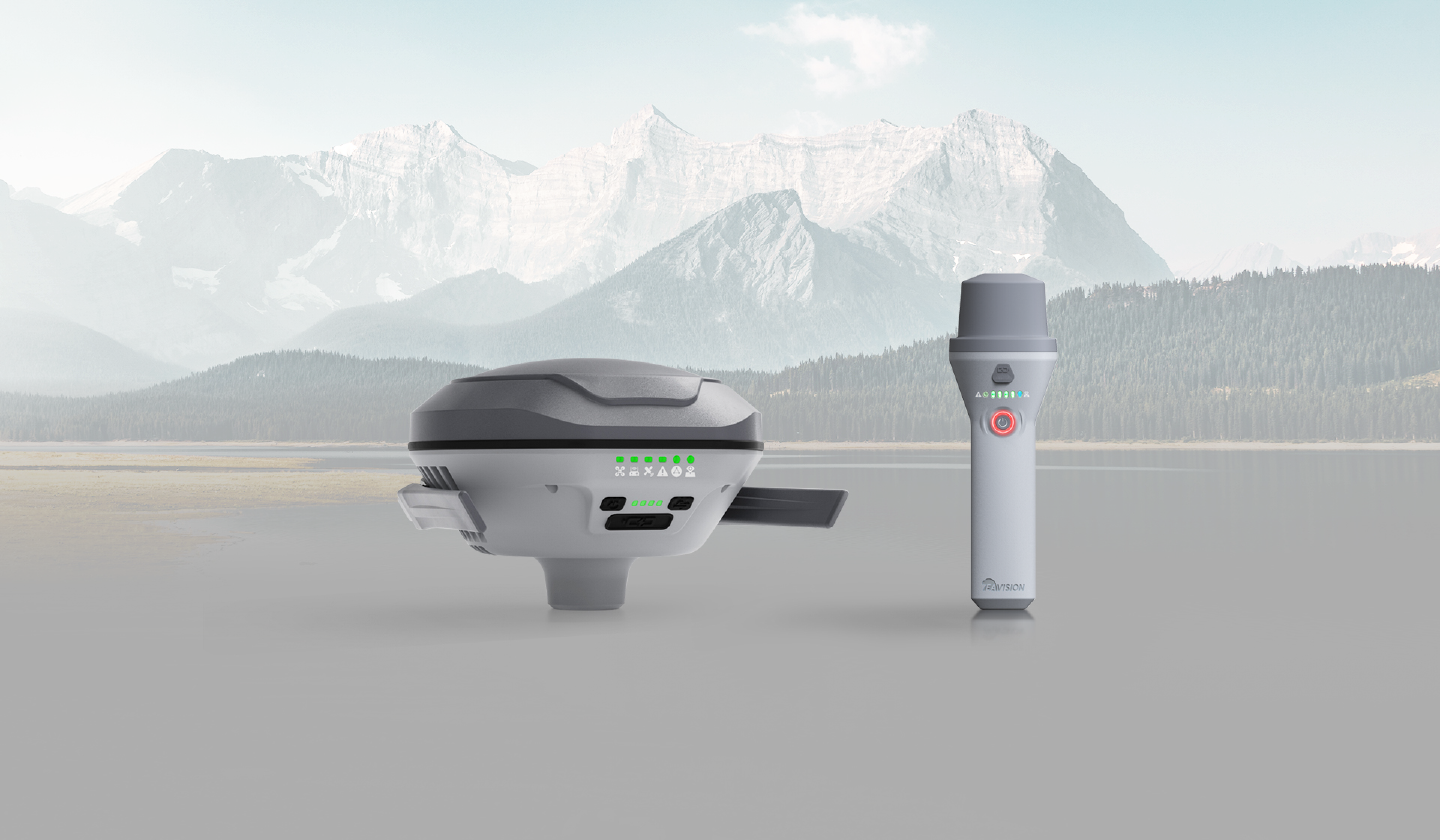

Super-Link Communication Station &
Handheld Surveying Tool
Four powerful functions in one: High-Precision Mapping, Offline Base Station, Signal Relay, and Lifting Guidance. Effortlessly handle operations in offline, weak-signal, or mountain-obstructed environments.
All-New Interactive Experience
Ergonomic design，comfortable to hold, intuitive to use
Extended Communication Range
Stable connectivity for tall crops, hills, and mountain terrains —no fear of signal loss
RTK Mobile Base Station
Provides the aircraft with centimeter-level, real-time positioning for precision navigation
High-Capacity Battery, Extended Endurance.
Power through your day with an effortless two-battery cycling.

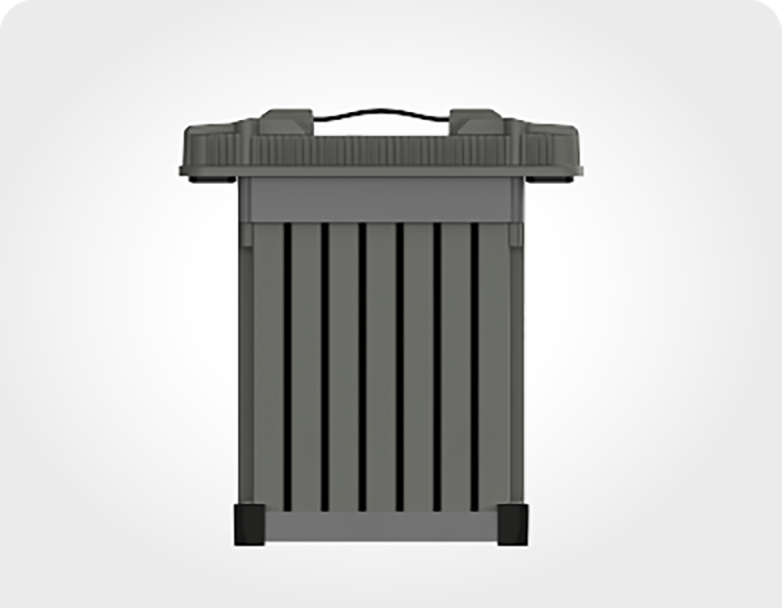

Innovative CTB Integrated Ultra-Fast-Charging Battery
Our blade-style battery design provides independent cell cooling and a 7x larger surface area, dramatically improving heat dissipation and battery cycle efficiency.

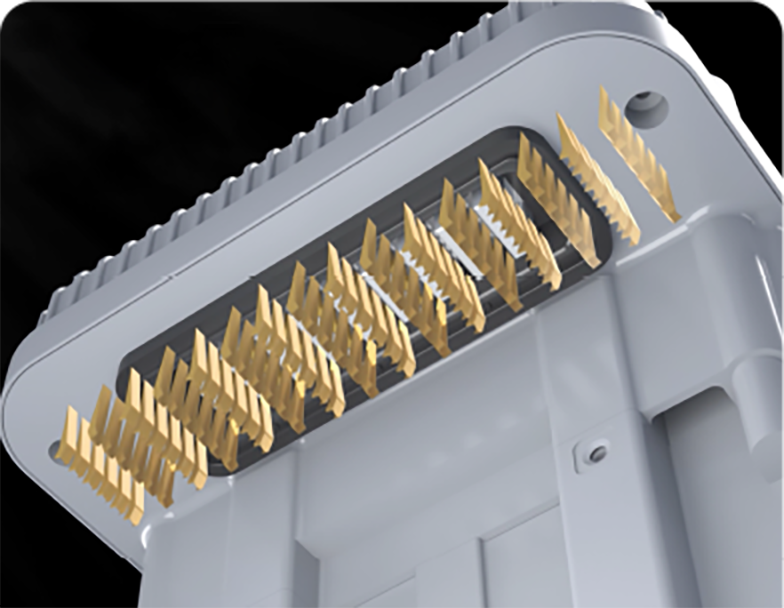

Dual-Port Charging
Contact area increased threefold, connector lifespan doubled,eliminating overheating issues during high-temperature operations in summer.
45Ah Ultra-High Capacity
A 40% boost in battery capacity delivers a massive improvement in operational efficiency.
9-Minute Charge for 12-Minute Flight Endurance
Support dual-battery cycling.

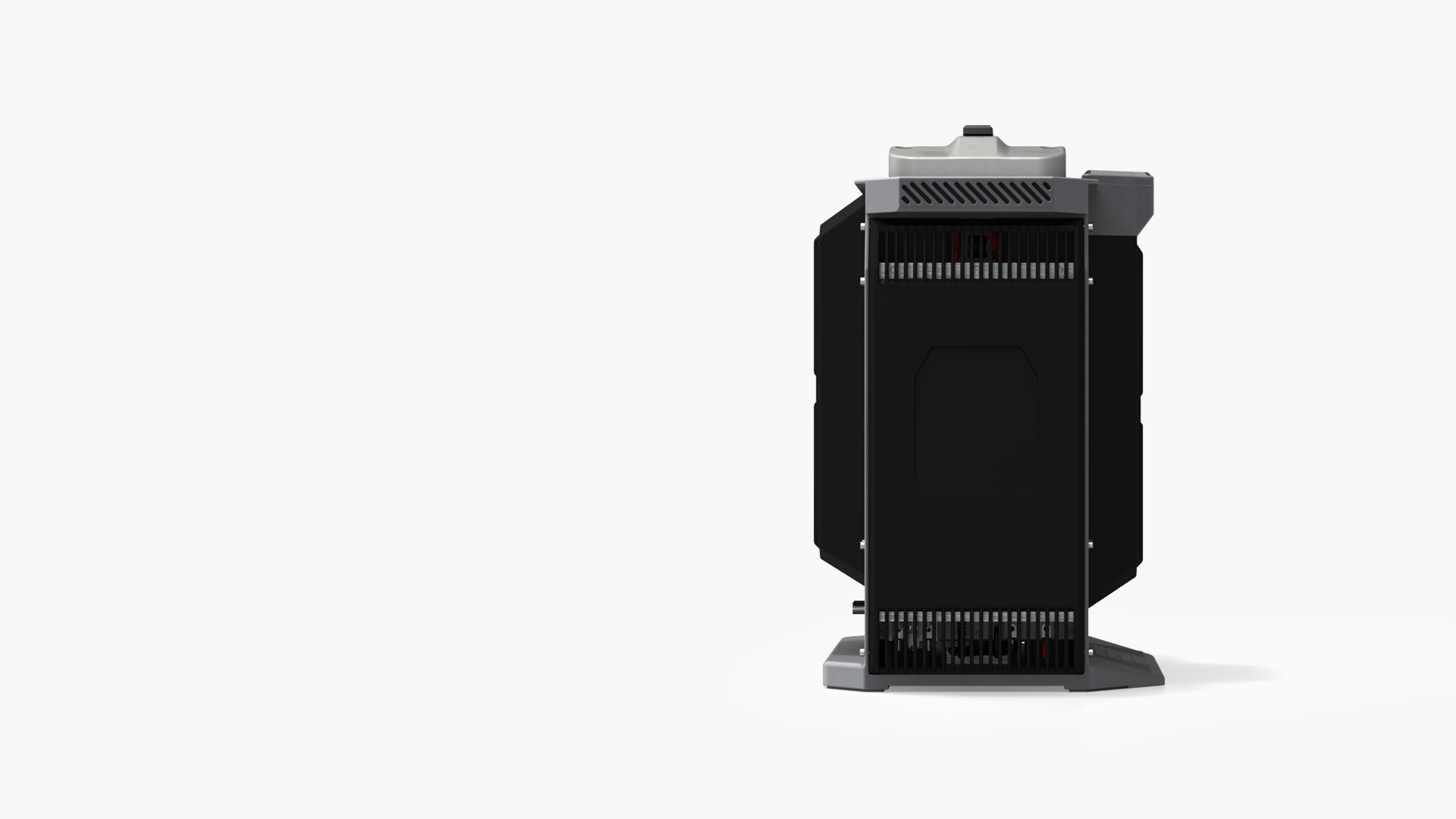

Integrated Cooling Charger
Safe and Fast
Equipped with dual-axis unidirectional fans, the charger supports 5C fast charging and can fully recharge a battery in as little as 9 minutes. It enables fast dual-battery cycling even in 40 °C environments. Fast and slow charging modes are customizable, and the system supports both generators and standard rural power grids to suit all operational scenarios.
min
To Fully Charge One Battery
Continuous Two-Battery Rotation
EA‑J150 Specifications
Max Wheelbase
2600mm
Dimensions (Folded)
1324mm*800mm*950mm
Max Takeoff Weight
149.9kg
Dimensions (Unfolded)
3380mm*3550mm*950mm
Spray Tank Capacity
70L
Weight for Spraying
75kg
Effective Spray Width
15m
Hover Time
No load 19min30s
Droplet Size
10-300μm
Battery Capacity
45000mAh
IP Rating
Modules IP67, Entire Drone IPX6K
Charging Time
9 min (30%–95% charge)
