Spraying, Spreading, Lifting and Mapping
Fully Upgraded
Max Flow Rate
24 L/min
Max Spreading Payload
50 kg
Max Lifting Capacity
60 kg
EA-J70
Intro
Spec
Solo Mission, Mastered

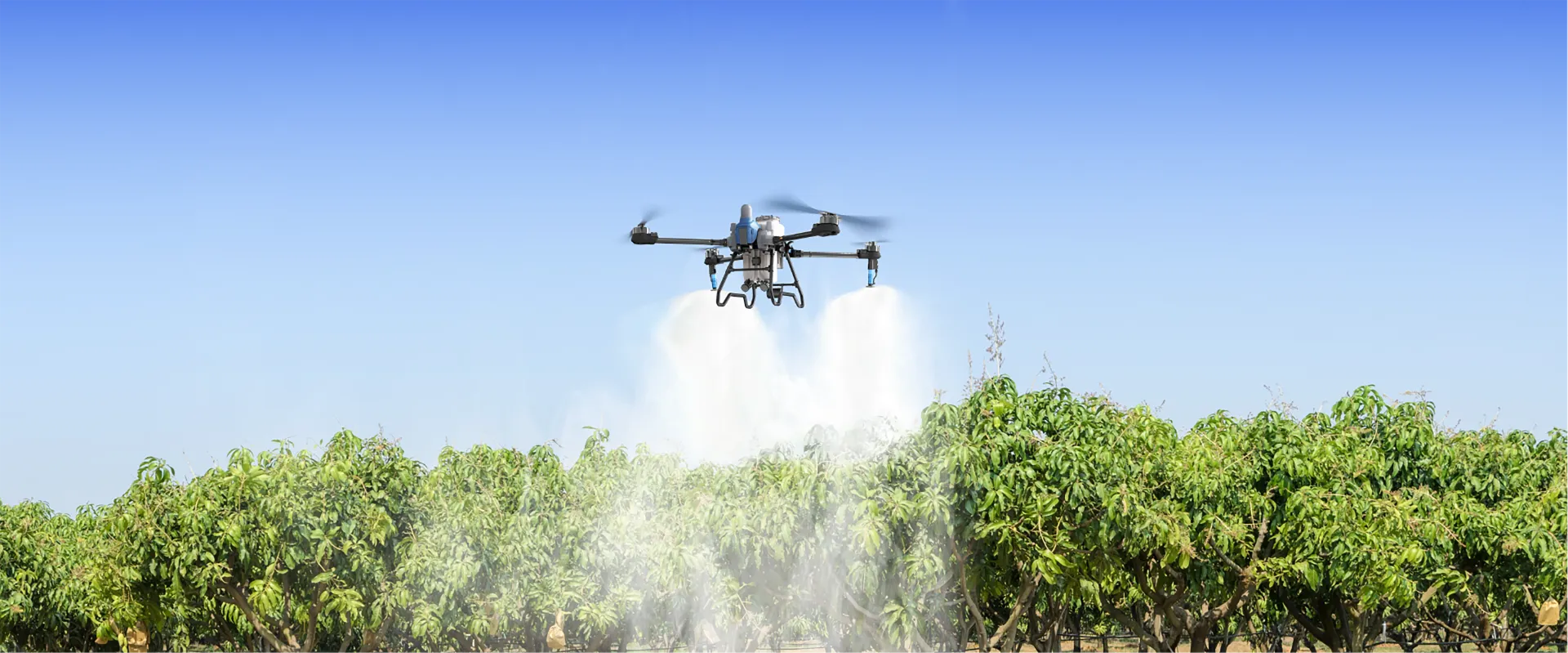

EAVISION J70
2025Agricultural Drone
- Key Highlights
- Application Scenarios
- Industrial Design
- Operation Control
- Power System

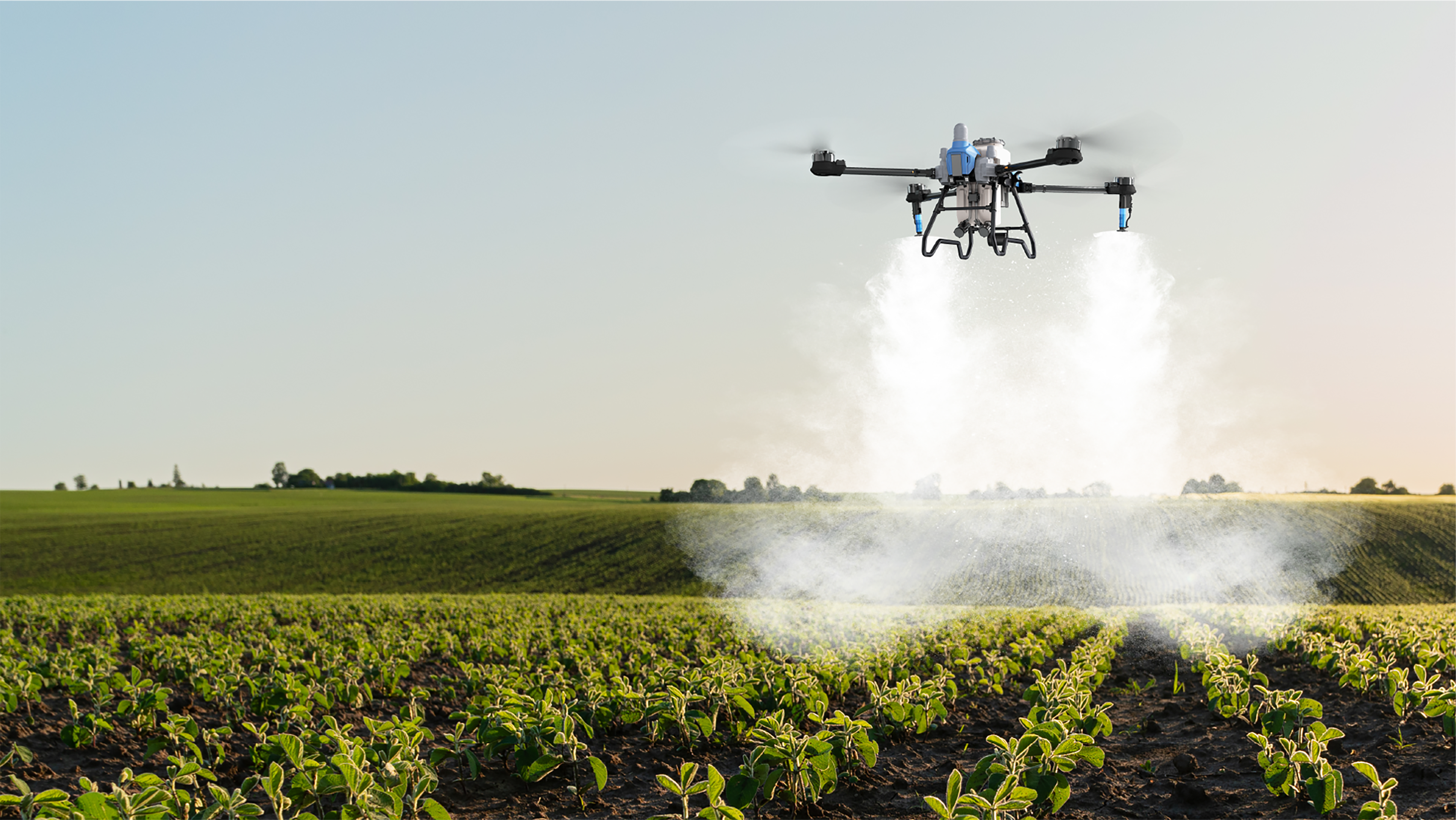

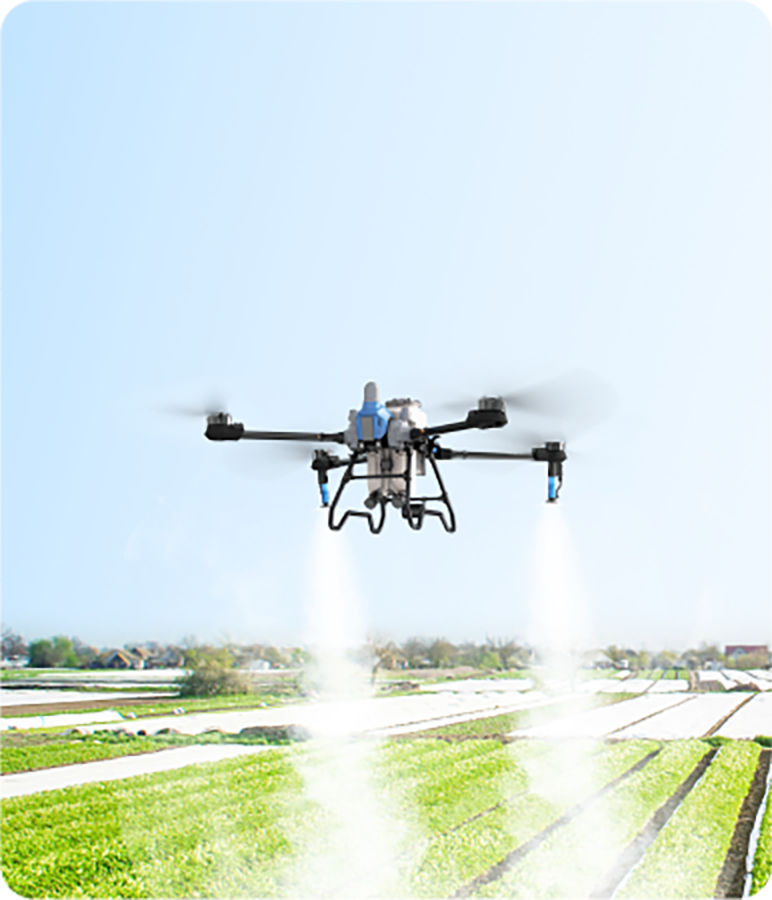

EAVISION Scenarios
Uniform · Penetrating
New stainless-steel corrosion-resistant pump core design.
Delivers consistent output even with high-concentration viscous formulations.
Dual-layer nozzles double the fine mist volume and improve coverage.
35 L
Spray Tank
24 L/min
Max Flow Rate
10 m
Max Spray Width
10-300 μm
Droplet Size

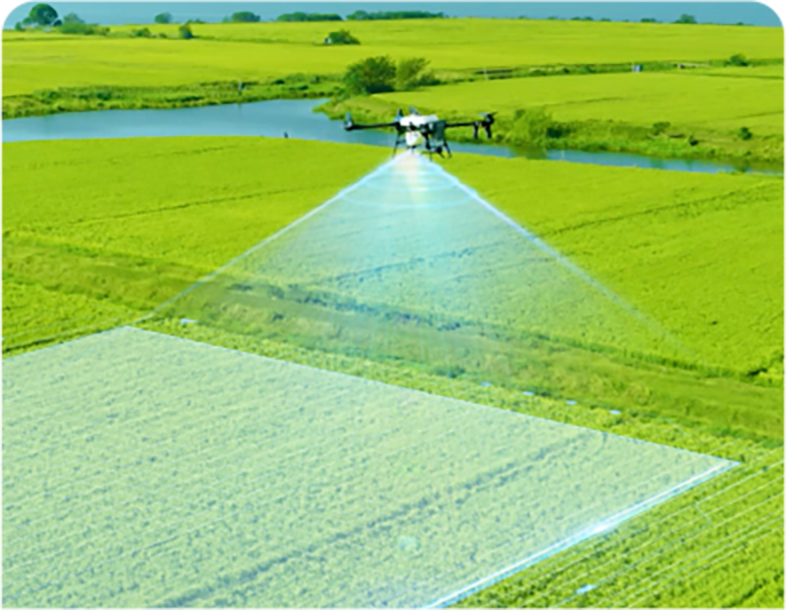

Rice Fields Spraying
Orchards Spraying
Cotton Defoliant Operation
Vegetable Foliar Fetilization

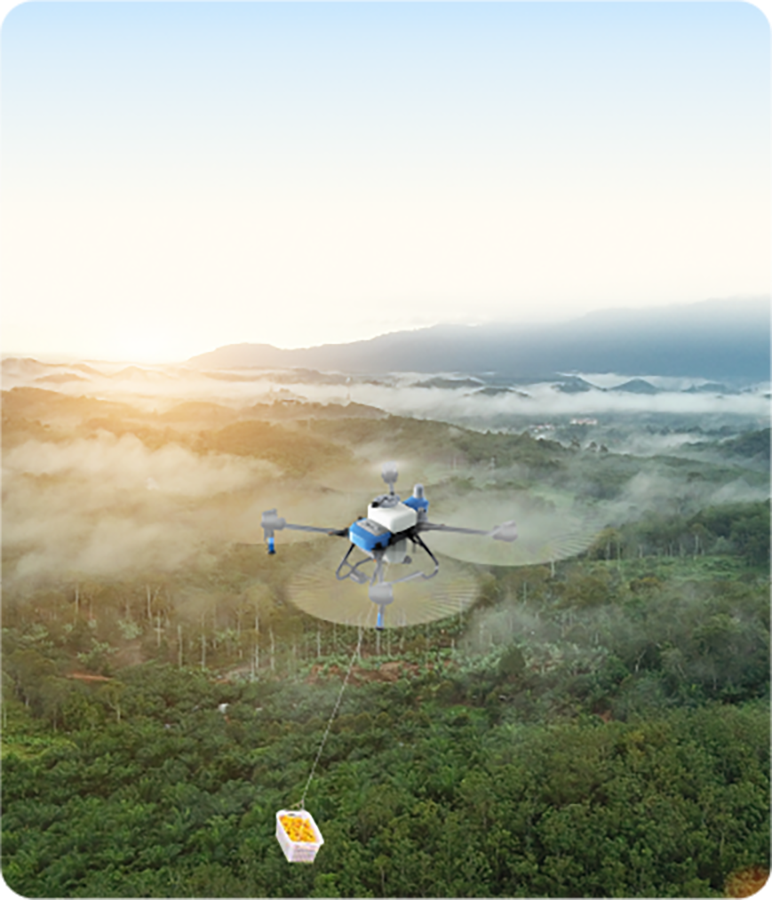

EAVISION Lifting Scenarios
Fast · High · Stable
The new Sport Mode enhances climb performance for greater lifting
efficiency. Lifting guidance enables one-tap navigating between take-off
and drop-off points, reducing operator workload and transport costs.
60 kg
Max Lifting Payload
100 m
Vertical Transport Height
360°
Automatic Obstacle Hover
25%
Efficiency Boosted

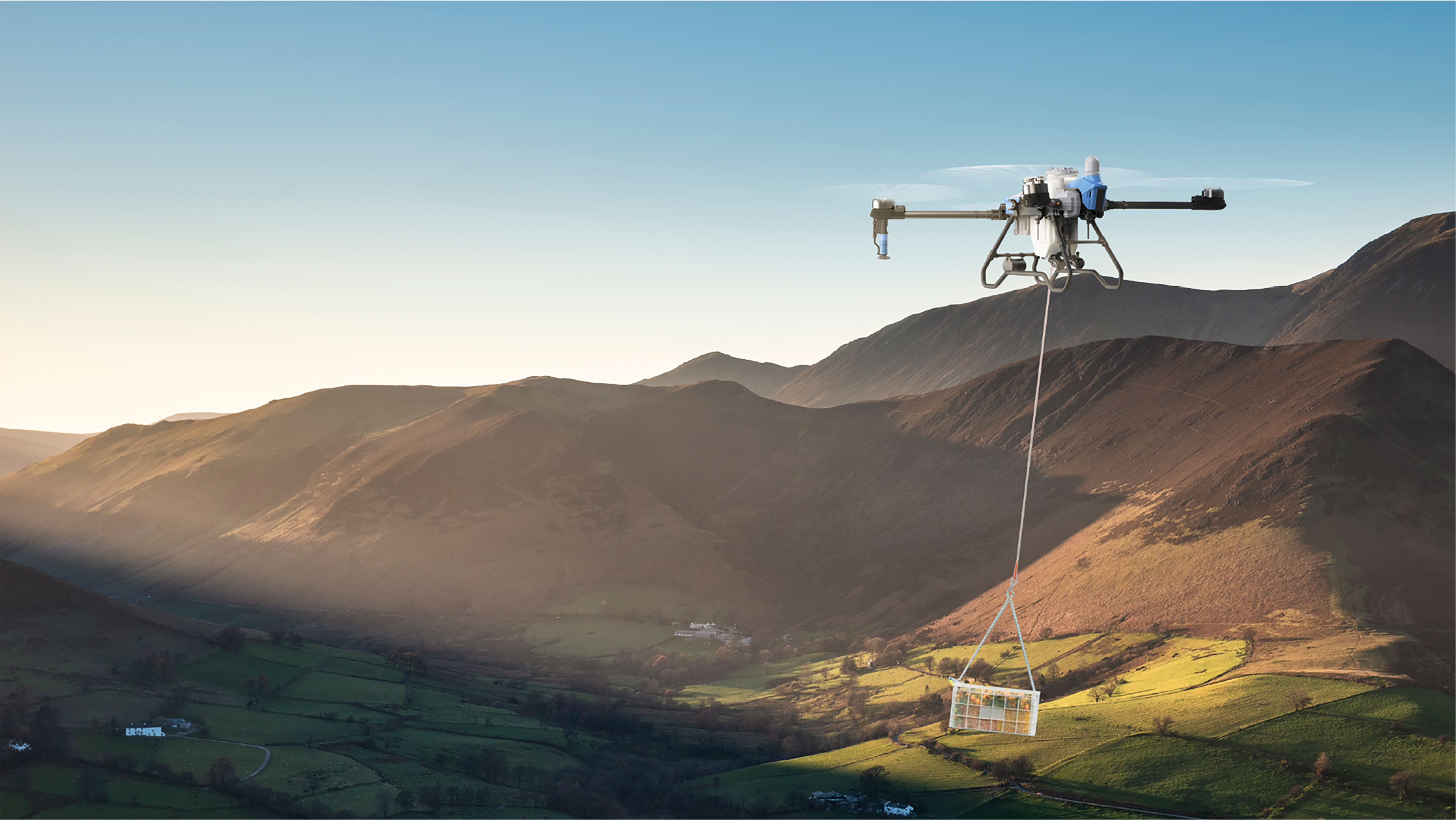

Transport Mode
The lifting hook remains securely locked during flight, ensuring a firm and safe operation.
High-Performance Remote Controller
Brand new high-performance remote controller features a 7-inch automotive-grade HD display for a clearer interface. It is powered by a 6nm octa-core automotive-grade AI processor and is equipped with a high-performance cooling fan for peak computing power and more responsive operation.
Auto-Guided Lifting
The system enables one-tap navigating between take-off and drop-off points, reducing manual effort and transport costs. Combined with the new obstacle avoidance system, it provides 360° automatic hovering to avoid collisions during manual flight.

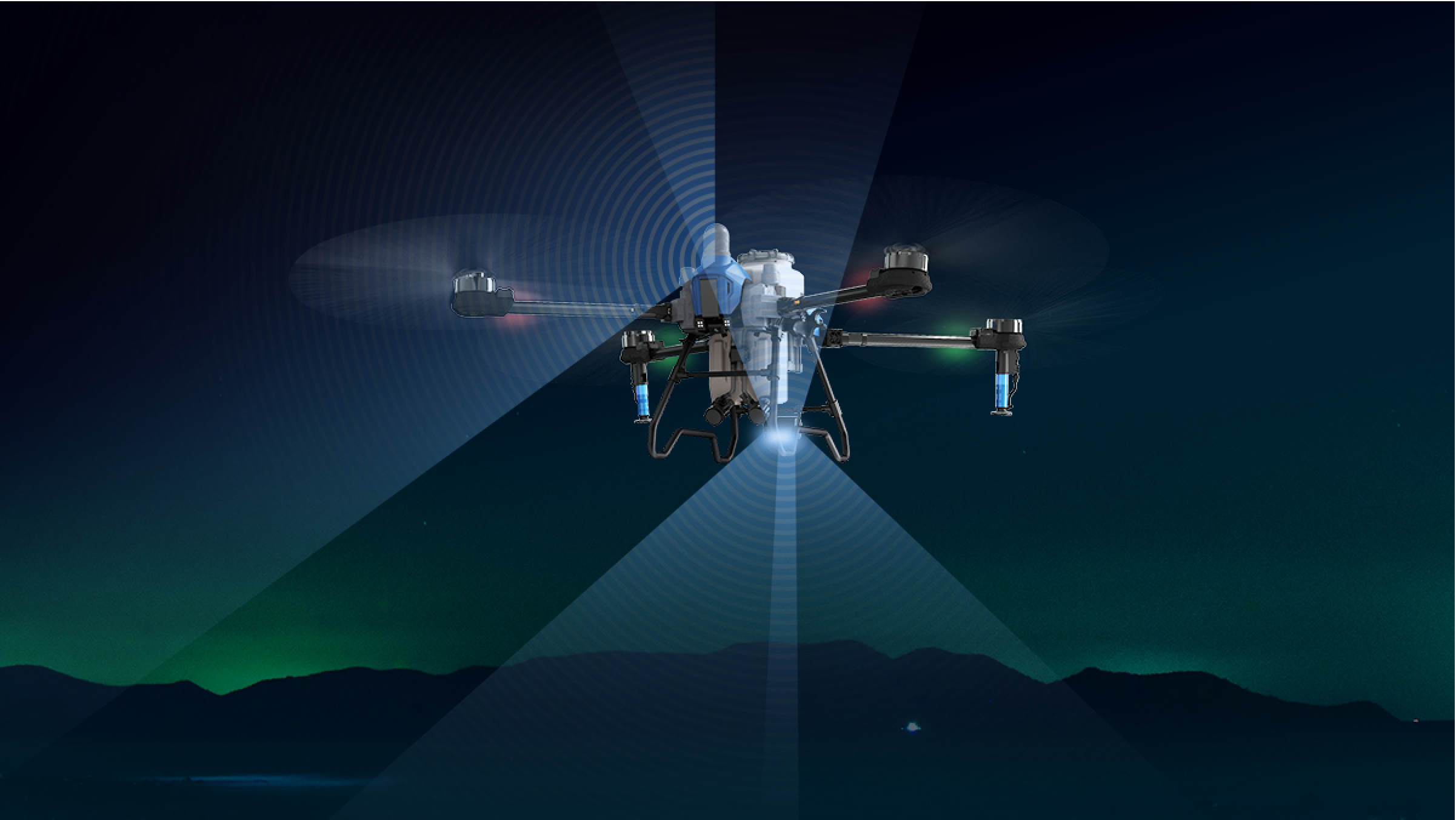

EAVISION 360° Laser Compound-Eye Perception System
Laser Compound
Eye for Safer Flight
EAVISION's perception system is comprehensively upgraded. The all-new ALS compound-eye LiDAR and active phased-array radar deliver more comprehensive obstacle avoidance capabilities. With 360° × 180° ultra-wide field-of-view detection and an observation distance increased to 150 meters, it ensures complete, top-to-bottom angular coverage of hazards like dead branches, guy wires, and utility poles within the mission plot.
Ultra-Wide Obstacle Detection
Max Detection Range
m

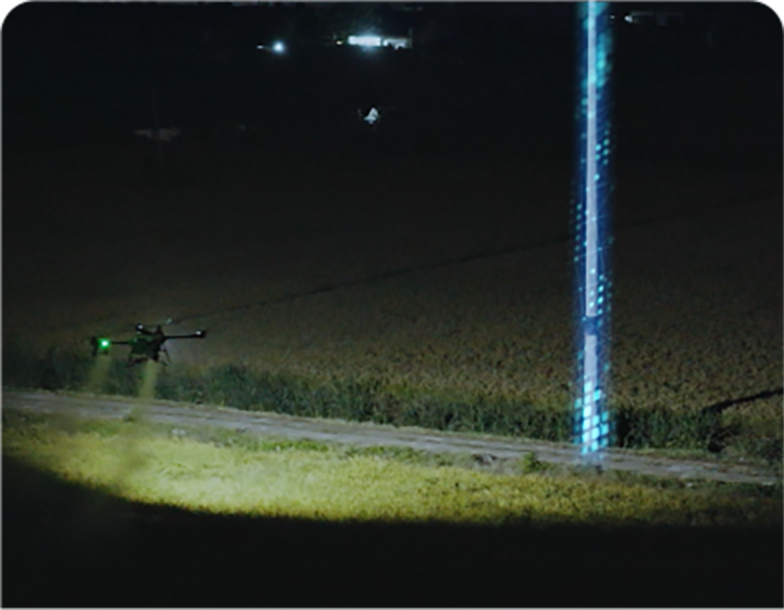

Night-Flight Mode
Power Lines Nowhere to Hide
Night-time obstacle detection enables day-and-night operations. In mountainous or orchard environments with intersecting power lines, no manual marking is needed, ensuring all-scenario safety for night operations.

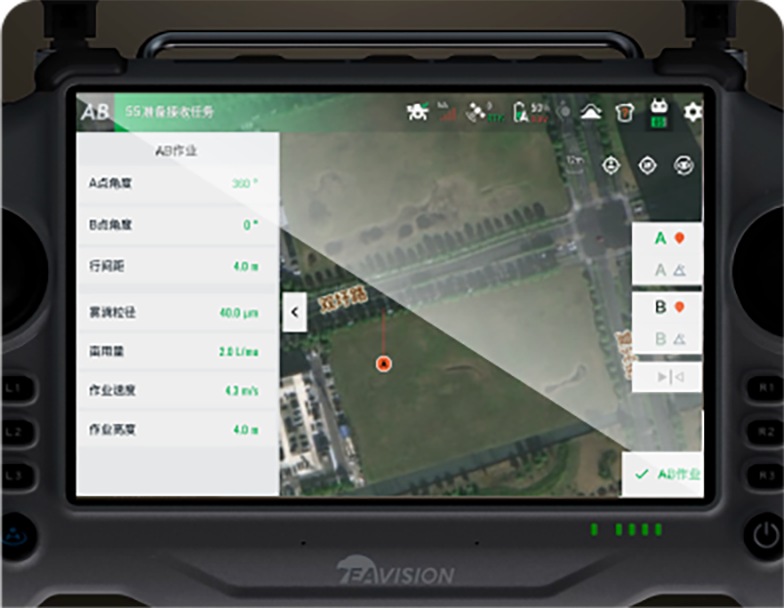

AB Route Mode
Plan AB routes mid-air and launch with a single tap for enhanced efficiency. The new Aerial Relay mode allows for instant in-flight task deployment, eliminating the need for repeated landings.
Autonomous Obstacle Avoidance
Safer Than Ever

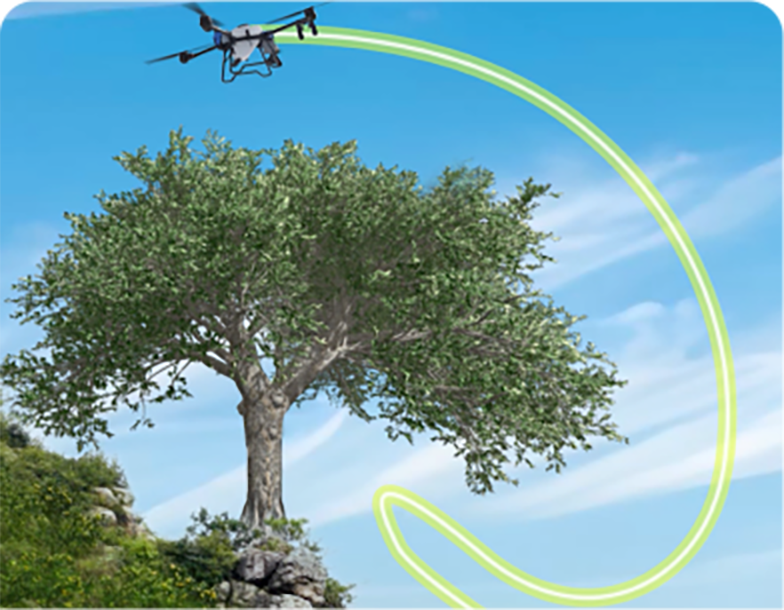

One-tap takeoff is available anytime, anywhere. With the industry-first 180° escape maneuver, the drone can operate beneath dense canopies with more comprehensive coverage and smoother crop-following flight performance.
Built-in Aerial Mapping
Instantly Generate HD Maps
The new 2K fisheye FPV camera adopts virtual gimbal with electronic stabilization. Optimized mapping algorithms enable continuous high-speed capture, automatic cloud backup upon disconnection, and seamless data transfer after landing, with no waiting required.

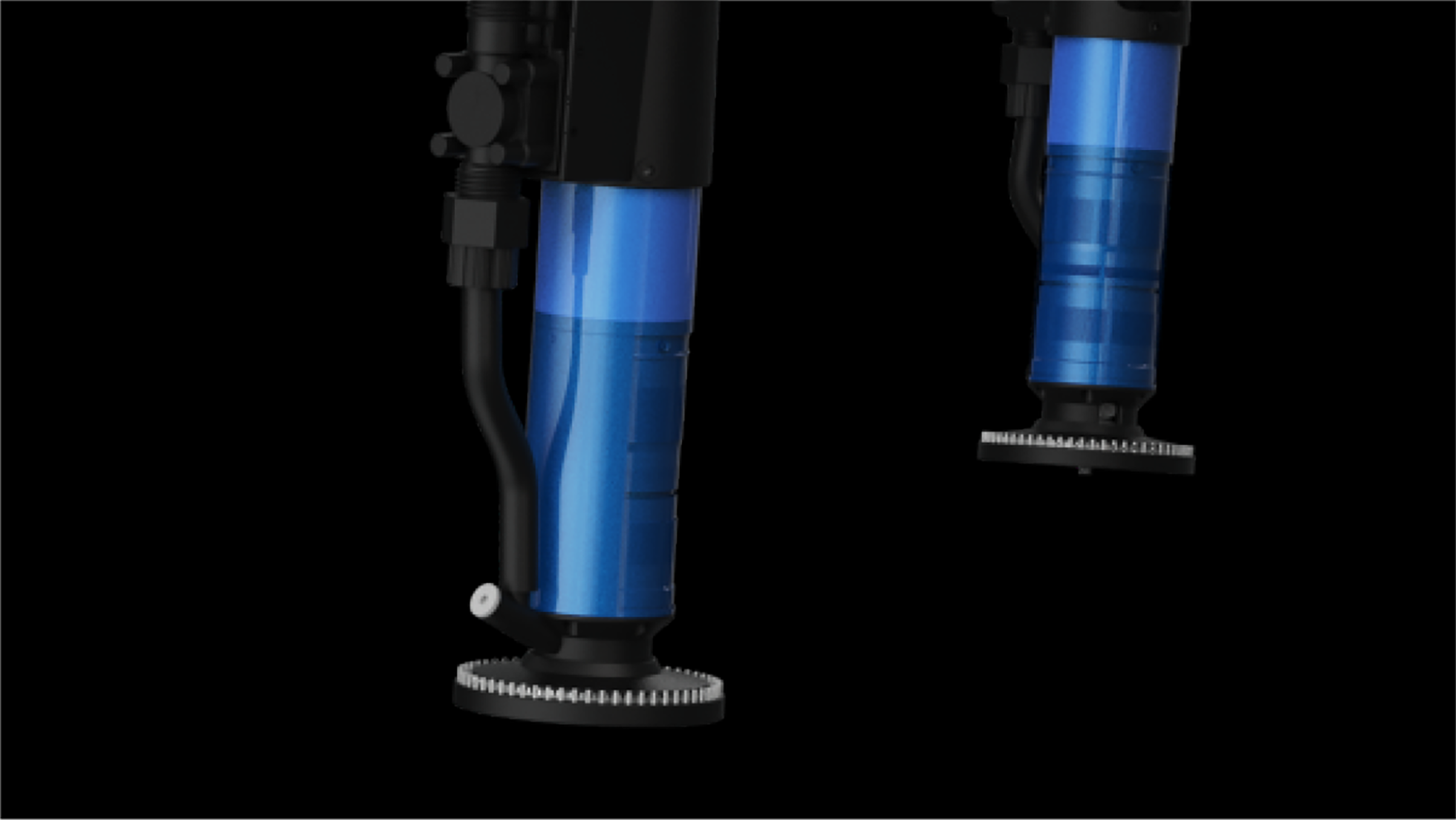

3rd-Gen CCMS® Bimodal Mist Nozzle
Upgraded Nozzles for
Superior Performance
Our proprietary dual-layer spray disc dramatically increases mist volume, enhances penetration, and improves overall atomization efficiency.Its refined internal flow-guiding structure ensures more uniform misting and smoother atomization, while reducing clogging during long-duration operations.
Max Flow Rate
L/min
Max Service Life
L
Exclusive Hybrid Droplet Technology
Precision Care for
Every Crop
The new mixed-droplet mode delivers four droplet sizes in a single flight—large droplets coat leaf surfaces evenly while smaller droplets fully cover the underside. In dense orchard canopies, the system leverages the MCRFF (Mist Counter-rotating Rolling Flow Field) to generate a powerful, multi-directional vortex. This creates a diffused mist that achieves full 360° penetration from the outer canopy to the inner core.
Per Flight
Droplet Sizes
Adjustable Range
μm

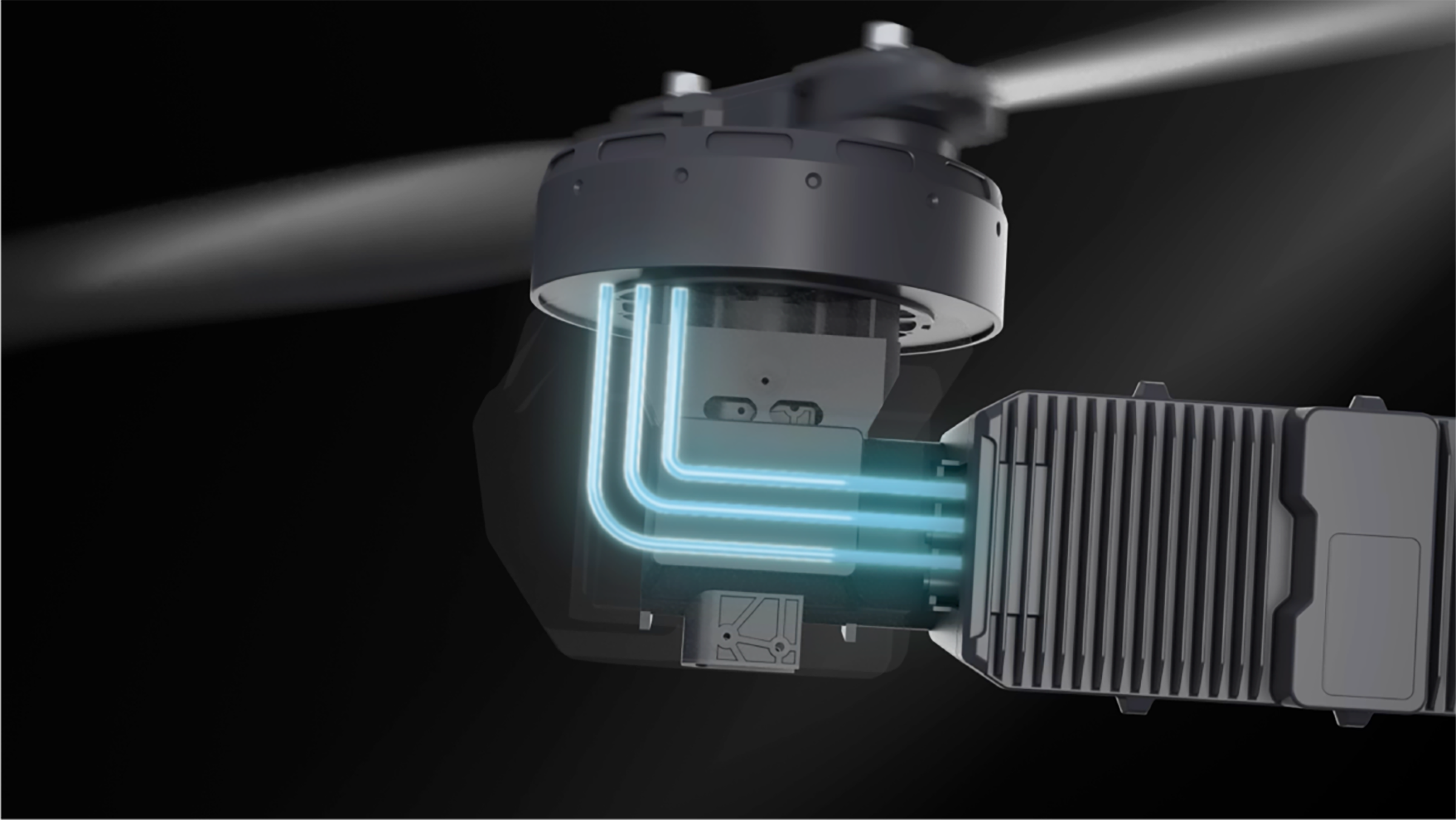

56-Inch High-Strength
High Thrust
High Efficiency
Synchronized yaw during takeoff/landing, combined with drift turns for rapid route switching, ensure exceptional wind-mist synchronization and agile responsiveness.
Overall operational efficiency reaches up to 24 ha/h.
Inch
High-Strength Propellers
m/s
Max Flight Speed
Simplified Design
Uncompromising Reliability
A heavy-duty industrial design paired with a low-drag airframe improves efficiency, while advanced materials increase overall strength and durability—ensuring stable operation and easier maintenance.
Fully Autonomous Operations
Simple Control, Powerful Results
Intelligent Route Planning
The system automatically generates the optimal route based on your field's shape and flight parameters. It displays estimated return points for low battery or liquid levels and initiates automatic return when needed. Incomplete missions are automatically saved, allowing you to resume flight seamlessly and adapt to changing weather or unexpected events.
Entry & Exit Routes
Intelligent Images Stitching
Multi-Plot Operations
EAVISION Remote Controller
Stable Signal · Smooth Video Transmission · Intuitive Control
New Control Experience
Ergonomic design — comfortable to hold, intuitive to use
7-Inch Ultra-Bright Integrated Display
Clear visibility even under direct sunlight
8-Hour Ultra-Long Battery Life
No more range anxiety
Ultra-Wide FPV View
Virtual gimbal with smooth 90° FPV tilt adjustment
High-Performance Processor
Powered by an 8-core processor built on a 6nm architecture
Superior Situational Awareness
Supports field mapping and hand-drawn boundaries — truly “draw and fly”
Super-Link Communication Station &
Handheld Surveying Tool
Four powerful functions in one: High-Precision Mapping, Offline Base Station, Signal Relay, and Lifting Guidance.
Effortlessly handle operations in offline, weak-signal, or mountain-obstructed environments.
High-Capacity Battery, Extended Endurance.
Power through your day with an effortless two-battery cycling.

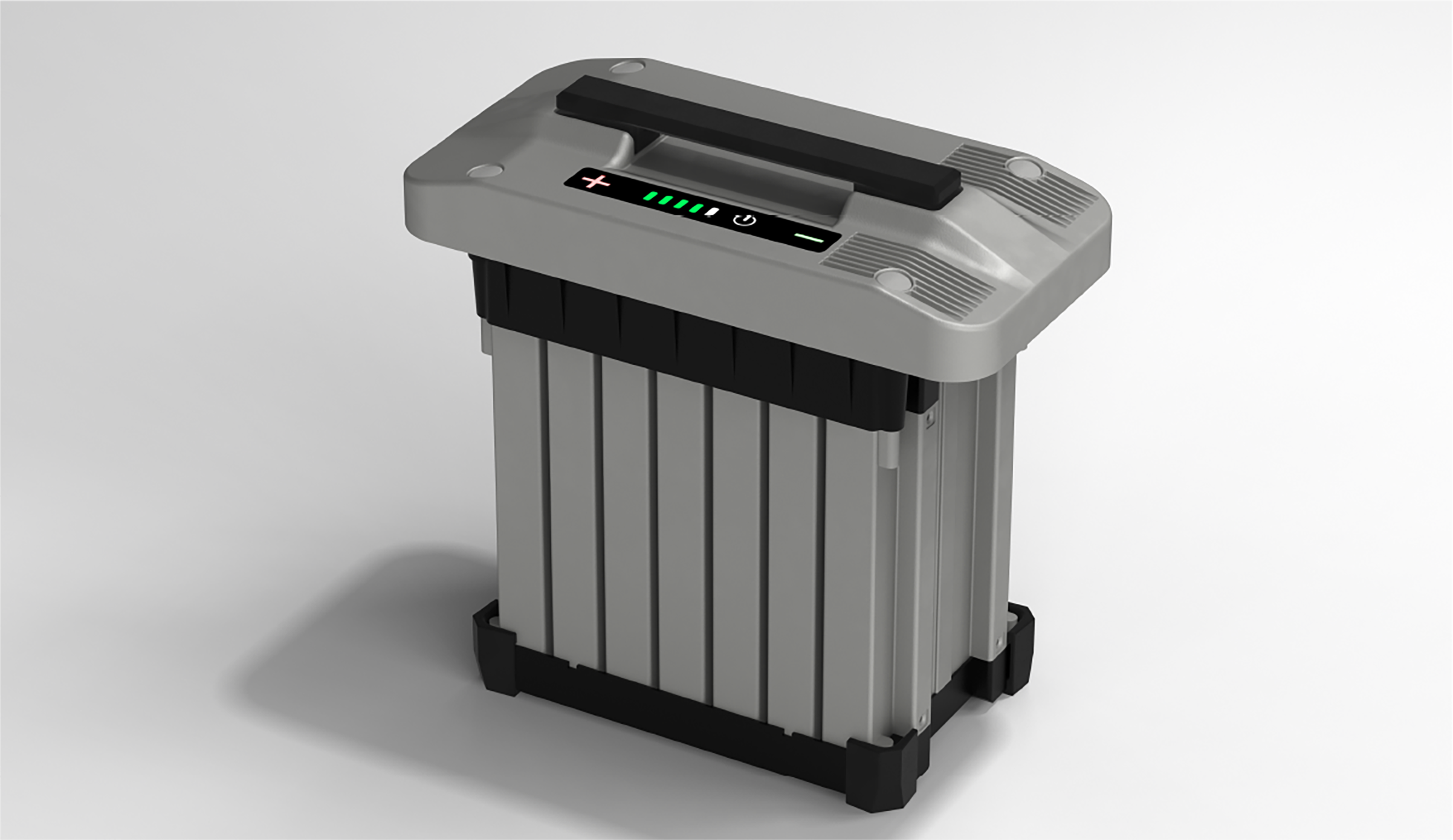

Innovative CTB Integrated Ultra-Fast-Charging Battery
Our blade-style battery design provides independent cell cooling and a 7x larger surface area, dramatically improving heat dissipation and battery cycle efficiency.
Dual-Port Charging
Contact area increased threefold, connector lifespan doubled,
eliminating overheating issues during high-temperature operations in summer.
29Ah Ultra-High Capacity
The larger battery capacity, increased by 40%, substantially improves operational efficiency.
9-Minute Charge for
12-Minute Flight Endurance
Dual-battery cycling for efficient operation.
Compact Size
High Efficiency

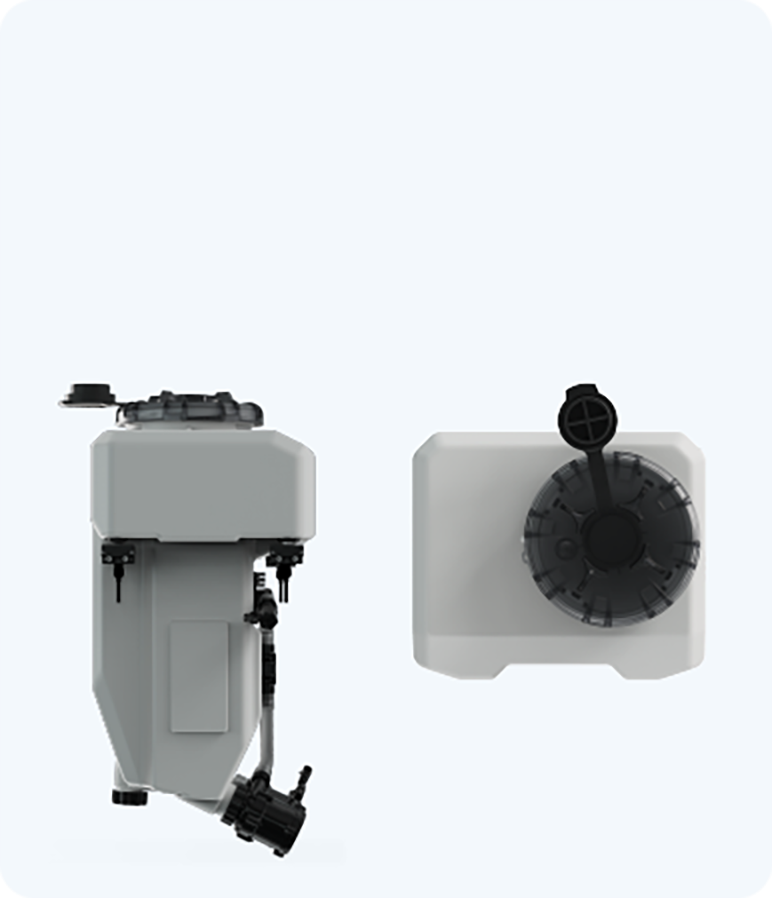

Large-Capacity Spray Tank

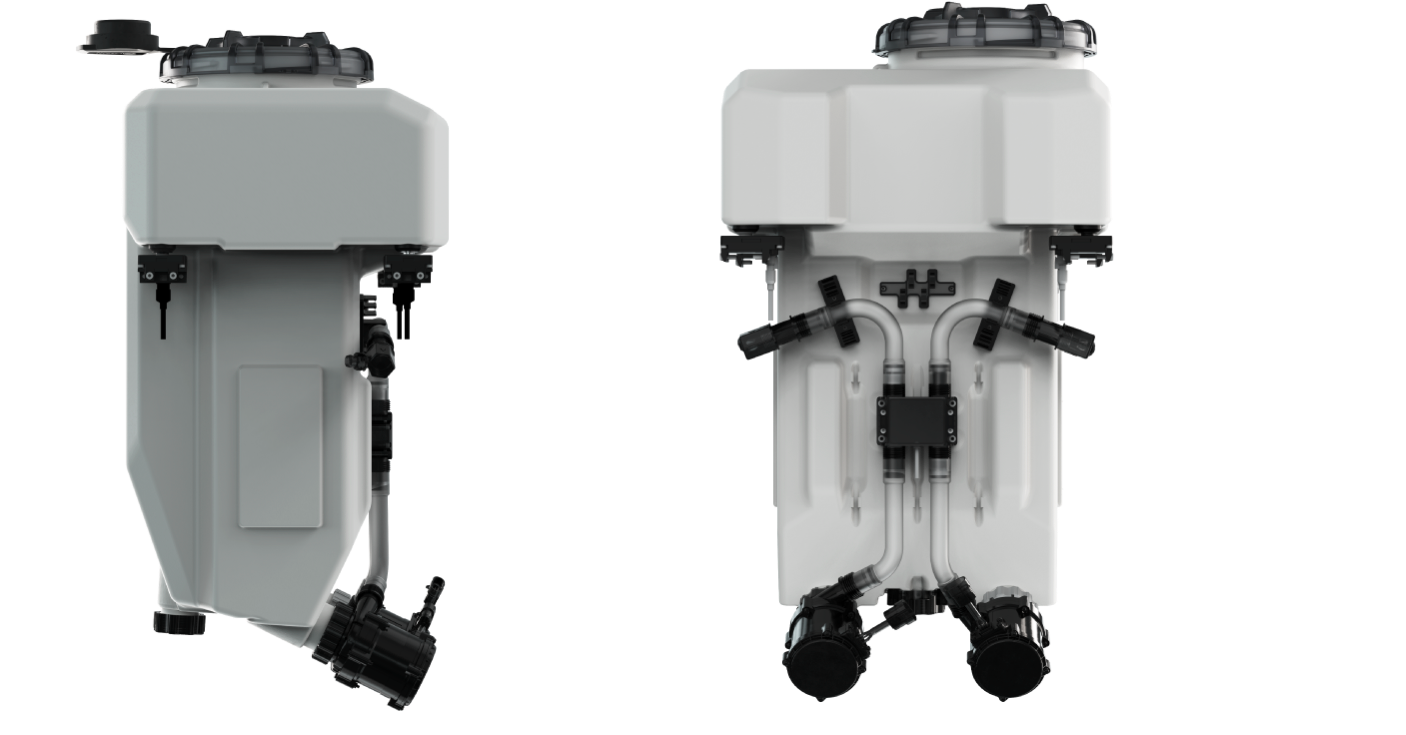

The 35 L large-capacity tank supports a maximum takeoff weight of 115 kg and allows quick swapping to a 70 L hopper. It features a rotary material shortage sensor for precise material flow detection and a replaceable blade agitator, enabling rapid spreading at 240 kg/min. The system intelligently calculates material trajectory to accurately set the spreading width.
L
Spray Tank
L
Hopper
Integrated Cooling Charger
Safe and Fast
Equipped with dual-axis unidirectional fans, the charger supports 5C fast charging and can fully recharge a battery in as little as 9 minutes. It enables fast dual-battery cycling even in 40 °C environments.
Fast and slow charging modes are customizable, and the system supports both generators and standard rural power grids to suit all operational scenarios.
minTo Fully Charge One Battery
Continuous Two-Battery Rotation
EA-J70 Specifications
Model
EAVISION J70
Max Flow Rate
16L/min (2 nozzles) 24L/min (4 nozzles)
Standard Tank Capacity
35L
Droplet Size
10-300um
Standard Nozzles
2
Lifting Payload
50KG
Max Effective Spray Width
10m
Work/Charge Time*
12min/9min
Spreader Rated Load
50KG
IP Rating
Modules IP67, Entire Drone IPX6K
Battery Capacity
29000mAh
Charging Power
9000W
*Operation time is based on typical spraying conditions (6 L/min flow rate). Charging time refers to the duration from 30% to 95% under typical conditions.
